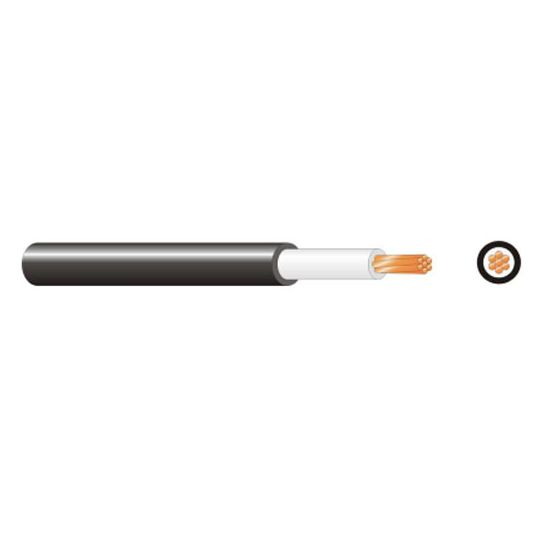

Copper XLPE PVC Circular Cable 95mm | 0.6/1 kV Rated | Durable PVC Sheath | @M of 100 | by Electra Cables
Copper XLPE PVC Circular Cable 95mm is designed for high current capacity with its single core 95mm² copper conductor and superior XLPE insulation. Ideal for power distribution in commercial and industrial settings, this cable features a durable PVC sheath for mechanical protection and chemical resistance, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper XLPE PVC Circular Cable 95mm | 0.6/1 kV Rated | Durable PVC Sheath | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: XLPE1950-100BLK
Alternatively Known As: 95mm single core cable, 95mm XLPE cable, 95mm copper power cable, 95mm² electrical cable, XLPE1950-100BLK
Technical Specifications
- Conductor: Plain annealed copper, stranded, circular
- Cross-sectional area: 95mm²
- Insulation: XLPE (Cross-linked Polyethylene)
- Sheath: PVC (Polyvinyl Chloride), black
- Rated voltage: 0.6/1kV
- Operating temperature: -15°C to +90°C
- Compliance: AS/NZS 5000.1
- Flame retardant and UV resistant
- Dimensions (H x L x W): 22mm x 1000mm x 22mm
- Weight: 3.5 kg
Key Features
- Single core 95mm² copper conductor for high current capacity
- XLPE insulation for superior electrical and thermal performance
- Durable PVC sheath for mechanical protection and chemical resistance
- Rated voltage: 0.6/1kV
- Circular stranded copper construction for flexibility and ease of installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 Wiring Rules and local regulations.
Applications
- Power distribution in commercial and industrial installations
- Underground and above ground electrical cabling
- Suitable for fixed wiring in switchboards, control panels, and power circuits
Standards & Compliance
- Complies with AS/NZS 5000.1 for power cables with extruded insulation and low voltage applications
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- XLPE insulation is halogen-free, reducing toxic emissions in case of fire
- Long service life reduces replacement frequency and waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
Available for immediate purchase. Ideal for commercial and industrial power distribution, switchboards, and fixed wiring applications.
