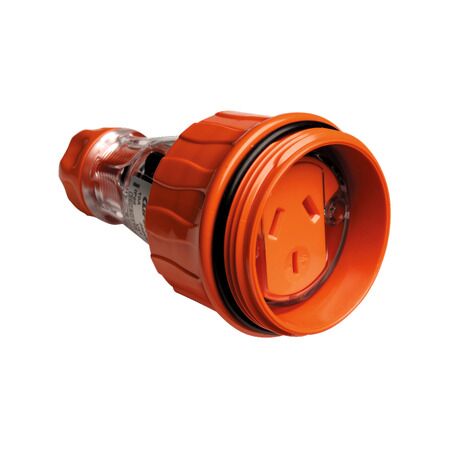

Cord Extension Socket 3 Flat PIN | 250V 10A | IP66 Rated | Electric Orange by Clipsal
Cord extension socket with 3 flat pins and 250V 10A rating—ideal for industrial and small commercial applications. Built for durability, with IP66 protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Cord Extension Socket, 3 Flat PIN, 250V, 10A - Electric Orange
Brand: Clipsal
SKU: 56CSC310-EO
Alternatively Known As: Industrial Cord Extension Socket, 56 Series Socket, Electric Orange Socket
Technical Specifications
- Rated current: 10A
- Rated operational voltage: 250V AC 50Hz
- Socket number: 1
- Outlet standard: Industrial
- Cable outer diameter: 7-16 mm
- Connections: Screw terminals 0.75-1.5 mm²
- IP Rating: IP66
- Material: Polycarbonate housing, Brass sleeves
- Poles description: 1P + N + E
- Dimensions (H x L x W): 85mm x 105mm x 85mm
- Weight: 0.139 kg
Key Features
- IP66 rated for protection against dust and water.
- Designed for external mounting with screw terminals.
Professional Installation Requirements
- Professional installation is recommended for optimal safety.
Applications
- Utility: Industrial applications
- Commercial: Small commercial use
Standards & Compliance
- Complies with AS/NZS 3120 and EN 60309-2.
Environmental Benefits
- Packaging made with recycled cardboard.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Cord Extension Socket in Electric Orange is available now for immediate purchase. Ideal for industrial and small commercial applications.
