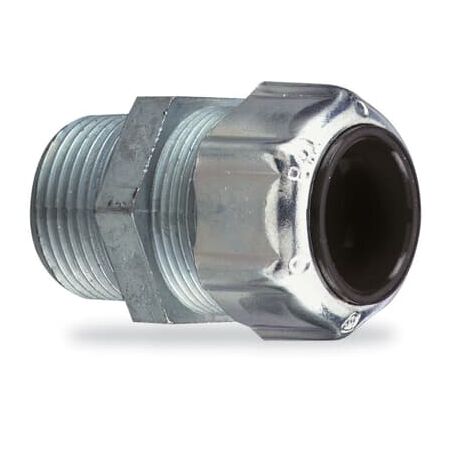

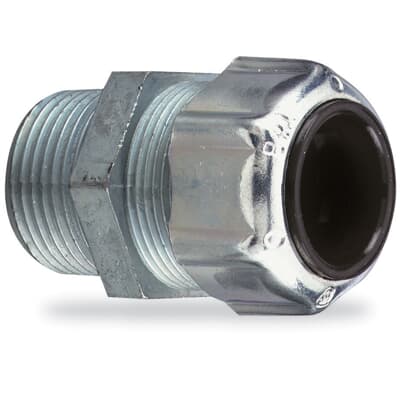

Cord Grip Connector 1/2 Inch 3.2-6.4mm Range Thomas & Betts
Thomas & Betts cord grip connector features 1/2 inch thread and 0.125-0.250 inch cable range. Ideal for flexible cord entry to enclosures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: T&B 2520 Cord Grip, Liquidtight Cord Connector, Flexible Cord Strain Relief Connector, Cable Gland
Technical Specifications
- Manufacturer Part Number: 2520
- Thread Size: 1/2 inch NPT
- Cable Diameter Range: 3.2-6.4 mm
- Connector Type: Straight liquidtight strain relief cord connector
- Material: Die-cast zinc body, steel gland nut and neoprene bushing
- Throat Diameter: 9/16 inch
- Temperature Rating: 105°C
- Approvals: UL Listed and CSA certified
- Installation Type: Straight male threaded connection
- Application Rating: Suitable for wet, dry and specified hazardous locations
- Dimensions (H x L x W): 25.4mm x 42.3mm x 15.9mm
- Weight: 0.1 kg
Key Features
- Provides liquidtight cable entry into electrical enclosures
- Forms a secure mechanical grip and strain relief for flexible cords
- Protects cable jackets and conductors from pull-out and mechanical stress
- Die-cast zinc construction provides durability for general industrial applications
- Compact straight configuration suits control panels, boxes and enclosures
- Neoprene bushing seals around cables from 3.2 to 6.4 mm diameter
Professional Installation Requirements
- Installation should be carried out by a licensed electrician or suitably qualified person in accordance with AS/NZS 3000 and the enclosure manufacturer's requirements. Confirm that the connector, cable diameter and enclosure application are suitable before installation.
Applications
- Flexible cord entry into electrical enclosures
- Control panels and junction boxes
- Industrial machinery and equipment
- Electrical cabinets and switchboards
- General control and power cable installations
Standards & Compliance
- AS/NZS 3000:2018 Electrical installations, where the connector is used as part of an Australian electrical installation
Environmental Benefits
- Zinc and steel components can be recovered through established metal recycling streams
- Durable metal construction supports extended service life and reduces replacement waste
- Strain relief helps prevent premature cable and equipment damage
Warranty Information
Two-year limited warranty against defects in materials and workmanship from the date of purchase, subject to the manufacturer's warranty conditions.
Available Now
Available through authorised THOMASBETTS distributors in Australia.
