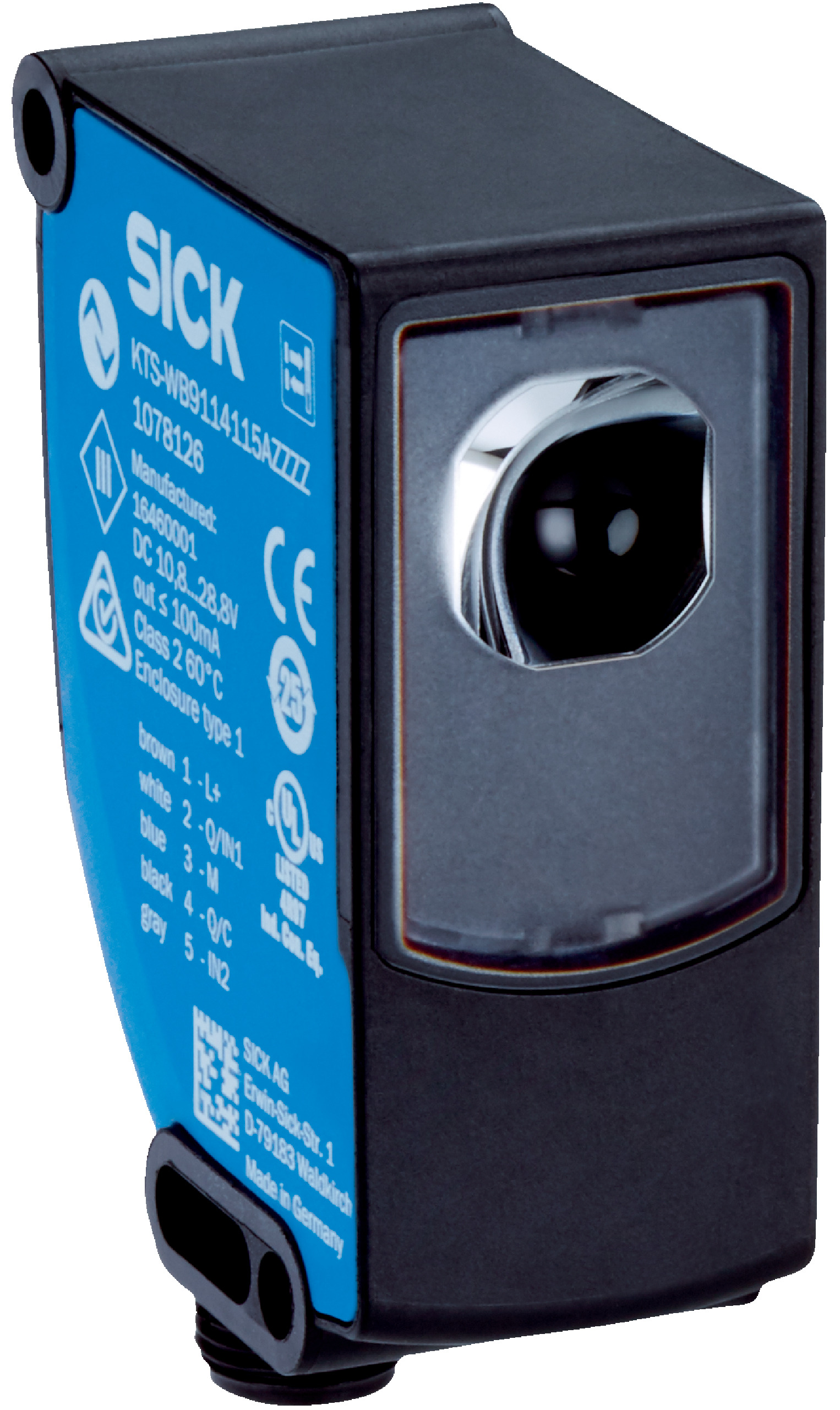

Core Color Sensor KTS-WN61141142ZZZZ | RGB LED Light Source | IP67 Rated | by SICK
The Core Color Sensor KTS-WN61141142ZZZZ is designed for precise color detection in industrial automation, featuring an RGB LED light source and a sensing distance of up to 13 mm. With adjustable delay time and robust IP67 housing, it ensures reliable performance in quality control applications, making it ideal for manufacturing processes that require accurate color testing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 100 mA
- Switching frequency: 12.5 kHz
- Response time: 40 µs
- Output type: NPN with max output current 100 mA
- Light wavelength: 470 nm, 525 nm, 625 nm
- Light spot size: 1.2 mm x 3.9 mm
- Connection: Male M12, 4-pin connector
- Housing material: VISTAL®
- Optics material: COP
- Enclosure rating: IP67
- Operating temperature: -20°C to +60°C
- Storage temperature: -25°C to +75°C
- Shock load: 30 g / 11 ms according to IEC 60068-2-27
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Core Color device type with RGB LED light source
- Sensing distance up to 13 mm with ±3 mm tolerance
- Adjustable delay time and light/dark switching output function
- 1-point and 2-point teach-in modes with key lock for parameter security
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated housing for robust environmental protection
- Operating temperature range from -20°C to +60°C
- Photobiological safety certified (IEC EN 62471)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor calibration.
Applications
- Color testing in industrial automation
- Quality control in manufacturing processes
- Specialized sensing applications requiring precise color detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK KTS-WN61141142ZZZZ Core Color Sensor is available for immediate purchase, ideal for industrial color testing and quality control applications.
