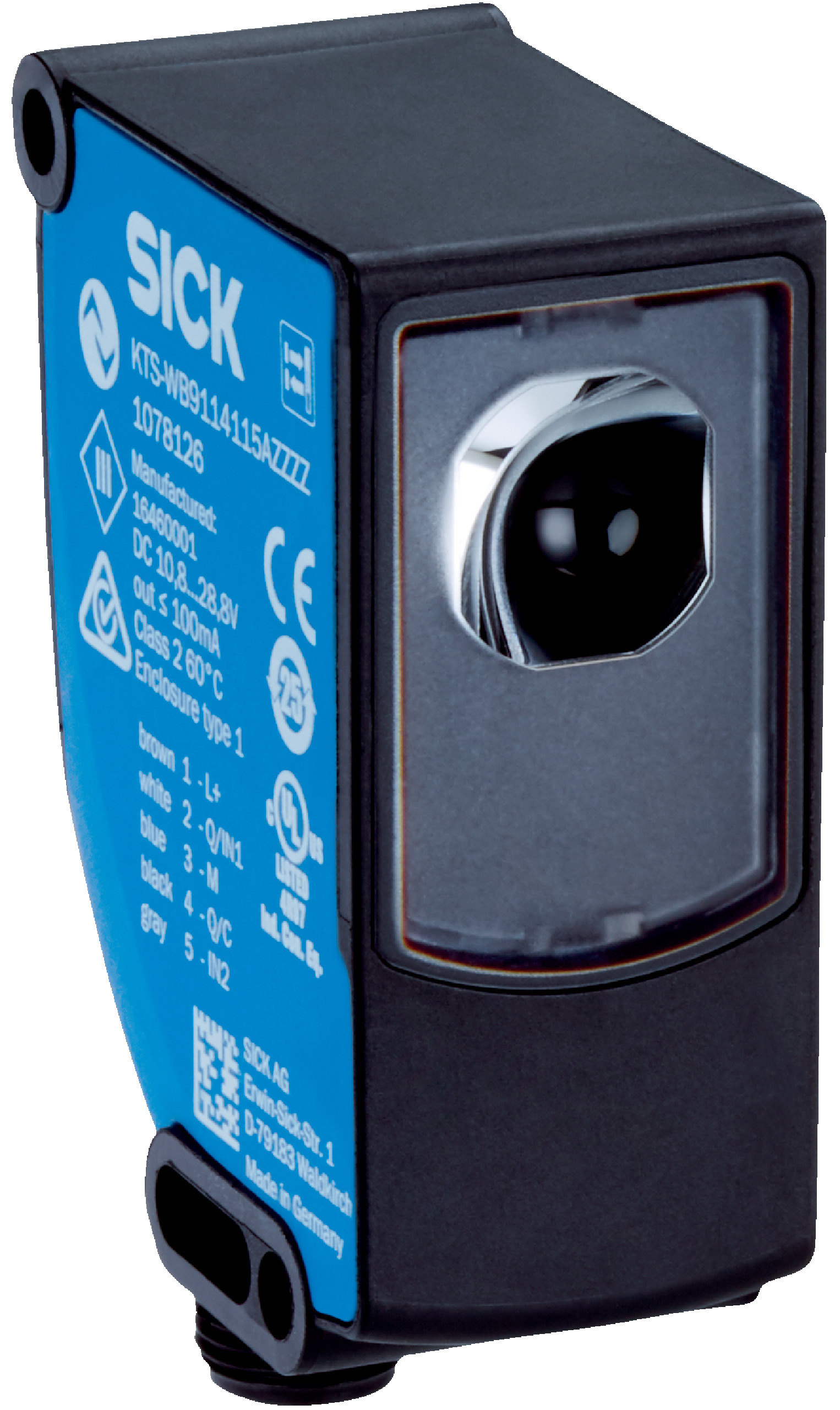

Core Color Sensor KTS-WN71141142ZZZZ | RGB LED Light Source | IP67 Rated | by SICK
The Core Color Sensor KTS-WN71141142ZZZZ is designed for precise color detection in industrial automation. With an RGB LED light source and a sensing distance of up to 13 mm, it ensures accurate color testing. Built for durability, this sensor features an IP67 rated enclosure, making it ideal for harsh environments and quality control systems in manufacturing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 12.5 kHz
- Response time: 40 µs
- Output type: NPN light/dark switching
- Output current max: 100 mA
- Teach-in modes: 1-point and dynamic
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Connection: Male M12, 4-pin connector
- Housing material: VISTAL®
- Optics material: COP
- Shock load: 30 g / 11 ms per IEC 60068-2-27
- Enclosure rating: IP67
- Operating temperature: -20°C to +60°C
- Storage temperature: -25°C to +75°C
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Core Color device type with RGB LED light source
- Sensing distance up to 13 mm with ±3 mm tolerance
- Light emission from the long side of housing with vertical light spot direction
- 1-point and dynamic teach-in modes for easy setup
- Adjustable delay time and light/dark switching output function
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for robust environmental protection
- Operating temperature range from -20°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Color test applications requiring precise color detection
- Industrial automation processes involving color sensing
- Quality control systems in manufacturing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with less than 100 mA current draw
- Durable IP67 housing reduces waste by extending product lifespan
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK KTS-WN71141142ZZZZ Core Color Sensor is available for immediate purchase, ideal for industrial color testing and automation applications.
