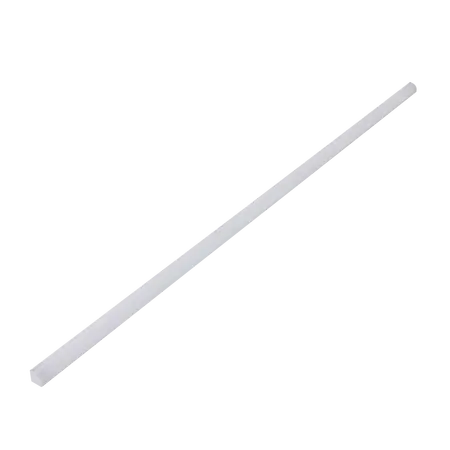

Corner-16 LED Profile 16x16mm Opal Diffuser White Per Metre Domus
Domus Corner-16 aluminium LED strip profile, 16x16mm, round opal diffuser, white, sold per metre.
Sign in
Please login to continue to your account.
Alternatively Known As: LP-1616R-CO, Corner-16 Round LED Profile, LED Strip Aluminium Channel, LED Corner Mounting Profile
- Model: LP-1616R-CO
- Variant: 22071
- Profile Type: Corner surface-mount LED profile
- Finish: White
- Material: Extruded aluminium 6063
- Diffuser: Curved opal/frost PMMA
- Mounting: Surface mounted at a 45-degree light angle
- IP Rating: IP20
- Sold As: 1 metre length, cuttable to suit installation
- Maximum Continuous Length: 2500mm
- LED Strip Compatibility: Selected Domus PLEX LED strips, excluding IP67 versions
- Driver Requirement: Remote driver required; not included
- Accessories: End caps and mounting clips ordered separately
- Dimensions (H x L x W): 16mm x 1000mm x 16mm
- Weight: 0.2 kg
- 16 x 16mm compact corner profile for LED strip lighting
- Curved opal PMMA diffuser conceals the LED strip and helps maintain a linear appearance
- White finish for discreet integration with cabinetry and interior surfaces
- Designed for under-cupboard, pelmet, wardrobe, shelving and stair applications
- Helps protect LED strips from foreign objects and vapours
- Directs light towards the working surface at approximately 45 degrees
- Can be cut to the required installation length
- The passive aluminium profile can be cut and surface-mounted by a competent installer. Electrical connection of the LED strip and remote driver should be completed by a licensed electrician in accordance with AS/NZS 3000:2018 and the applicable manufacturer instructions.
- Under kitchen cupboards and benches
- Wardrobes and built-in cabinetry
- Pelmet lighting
- Under shelving and steps
- Interior architectural and accent lighting
- Corner-mounted LED strip installations
- AS/NZS 3000:2018 applies to the associated electrical installation and selection of connected LED equipment; no product-specific Australian standard certification is stated for the passive profile.
- Extruded aluminium is durable and widely recyclable at end of service life
- The replaceable LED strip and diffuser arrangement can reduce waste compared with replacing a complete luminaire
- The profile helps protect LED strips from foreign objects and vapours, potentially extending service life and reducing replacement frequency
- Opal diffusion supports more even light distribution, which may help minimise over-lighting in suitable applications
Domus Lighting's current warranty statement provides a 12-month replacement warranty for products not otherwise listed in its warranty-duration table, subject to proof of purchase, authorised distribution, installation in accordance with instructions and other warranty conditions. Australian Consumer Law rights apply separately.
Available through Domus Lighting and authorised Australian distributors, subject to distributor stock.
