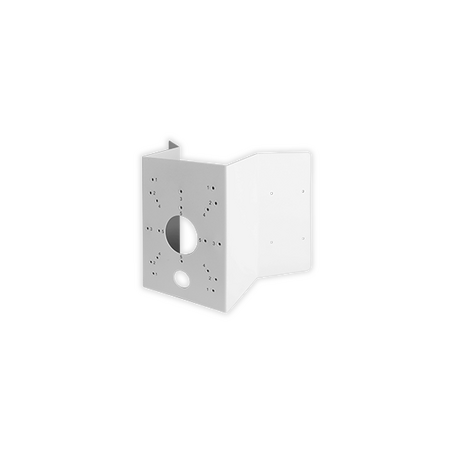

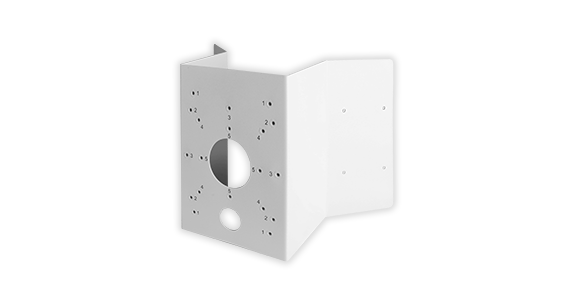

Corner and Pole Mount to Suit Digital Watchdog Heavy-Duty Ness
Ness corner and pole mount features heavy-duty corrosion-resistant metal. Ideal for mounting Digital Watchdog cameras in CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Digital Watchdog Corner Mount, CCTV Corner Mount, CCTV Pole Mount Bracket, DWC-V1CNMW
Technical Specifications
- Manufacturer Model: DWC-V1CNMW
- Ness SKU: 123-412
- Material: Steel
- Colour: White
- Mounting Options: Corner, indoor and outdoor
- Camera Compatibility: Selected Digital Watchdog vandal dome and bullet cameras
- Working Temperature: -40°C to 60°C
- Working Humidity: 10% to 90% RH
- Load-Bearing Requirement: Mounting surface must support five times the combined weight of the camera and bracket
- Included Accessories: Quick-start guide, camera mounting screws, screws and plastic anchors
- Mounting Hole Patterns: 102 x 142 mm, 105 x 110 mm, Ø121 mm and Ø78 mm
- Dimensions (H x L x W): 200mm x 145mm x 56mm
- Weight: 1.3 kg
Key Features
- Universal corner and pole mounting for compatible Digital Watchdog cameras
- High-grade steel construction for durable indoor and outdoor use
- Multiple numbered mounting points support compatible wall mounts and junction boxes
- White finish for discreet integration with CCTV installations
- Supplied with mounting screws, plastic anchors and camera mounting screws
- Suitable for commercial, industrial and government surveillance installations
Applications
- Corner mounting of Digital Watchdog vandal dome cameras
- Corner mounting of compatible Digital Watchdog bullet cameras
- Pole and structural mounting for CCTV cameras where the associated mounting hardware is suitable
- Indoor and outdoor commercial, industrial and government surveillance systems
Environmental Benefits
- Steel construction can be recycled at end of service life
- Durable construction supports extended service life and can reduce replacement waste
- Passive accessory requiring no electrical power during operation
Warranty Information
1-year manufacturer warranty for the DWC-V1CNMW accessory. Ness states that Digital Watchdog cameras, recorders and servers have a separate three-year warranty, which does not specifically identify this mounting accessory.
Available Now
Available through Ness and authorised Australian Digital Watchdog distributors.
