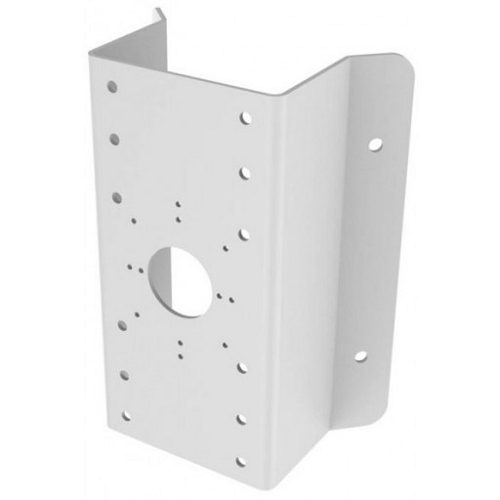

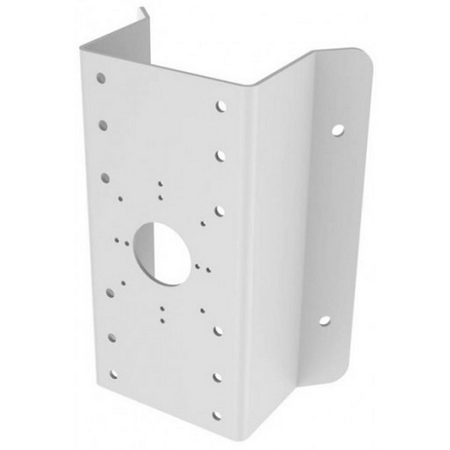

Corner Mount Bracket DS-1276ZJ to Suit Cameras Hikvision
Hikvision corner mount bracket features a fixing for external wall corners. Ideal for CCTV installs mounting cameras on building corners.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision CCTV Corner Mount, Camera Corner Bracket, External Wall Corner Mount
Technical Specifications
- Model: DS-1276ZJ
- Mount Type: Corner mount bracket
- Material: Aluminium alloy
- Colour: Hikvision white
- Compatible Equipment: Selected Hikvision wall-mount brackets and cameras
- Maximum Load Capacity: 10 kg
- Outdoor Use: Suitable with appropriate waterproofing and a suitable flat mounting surface
- Installation Requirement: Wall and fixings should support at least three times the combined camera and bracket weight
- Dimensions: 126 mm wide x 105 mm deep x 250 mm high
- Weight: Approximately 1.95 kg
- Dimensions (H x L x W): 250mm x 105mm x 126mm
- Weight: 1.95 kg
Key Features
- Designed for mounting CCTV cameras on external building corners
- Compatible with selected Hikvision wall-mount brackets
- Aluminium-alloy construction for a durable, lightweight mounting solution
- Helps extend the camera field of view around building corners
- White finish to match Hikvision camera mounting hardware
- Suitable for indoor or outdoor CCTV installations when correctly sealed and installed
- Maximum stated load capacity of 10 kg
Applications
- External wall-corner mounting of Hikvision CCTV cameras
- Commercial building security installations
- Residential security camera systems
- Industrial and warehouse surveillance installations
- Outdoor camera installations requiring an extended viewing angle
Standards & Compliance
- AS/NZS 62676.4:2020 — relevant application and installation guidance for CCTV systems; no separate bracket-specific Australian conformity claim identified.
Environmental Benefits
- Aluminium alloy is recyclable at end of service life
- Durable construction can extend service life and reduce replacement waste
- Supports the installation of CCTV systems without requiring additional structural support hardware where compatible wall brackets are already available
Warranty Information
A 3-year Hikvision ANZ manufacturer warranty is listed by an Australian Hikvision reseller for this model; confirm warranty eligibility and terms with the authorised distributor at purchase.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors.
