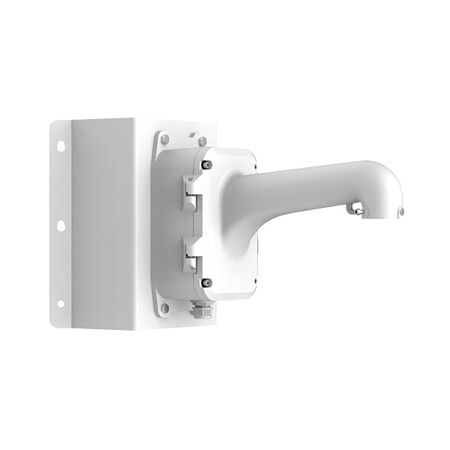

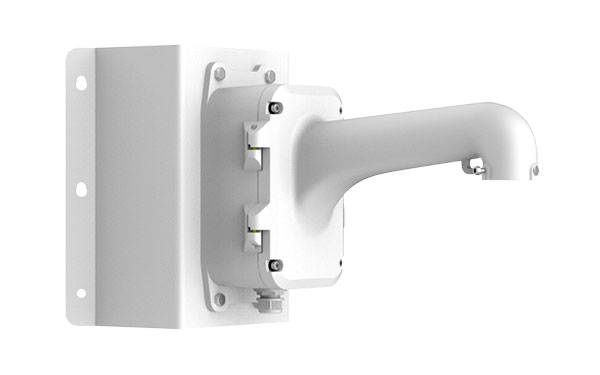

Corner Mount Bracket DS-1604ZJ-BOX-CORNER Hikvision
Hikvision corner mount bracket features corner mounting for CCTV cameras. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision PTZ Corner Mount, Speed Dome Corner Bracket, CCTV Corner Mount with Junction Box
Technical Specifications
- Mounting Type: Corner mount with integrated junction box
- Application: Hikvision PTZ speed dome cameras
- Material: Aluminium alloy and steel
- Finish: Surface spray treatment
- Cable Entry: Bottom and rear outlets
- Power Adapter Space: Accommodates 24 VAC, 3 A adapter
- Maximum Load: 10 kg
- Mounting Holes: 6 × 10 mm diameter
- Safety Feature: Integrated safety-rope hook
- Outdoor Use: Waterproof rubber required for outdoor installation
- Dimensions (H x L x W): 200mm x 542.5mm x 255.5mm
- Weight: 6.2 kg
Key Features
- Designed for corner mounting of PTZ speed dome cameras
- Integrated junction box for cable termination and equipment connections
- Supports both bottom and rear cable outlets
- Provides space for a 24 VAC, 3 A power adapter
- Aluminium alloy and steel construction with sprayed surface finish
- Integrated safety-rope hook assists speed dome installation
- Maximum supported load of 10 kg
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or security installer. Mount to a flat, structurally sound surface capable of supporting at least three times the combined weight of the bracket and camera. Follow the camera manufacturer's installation instructions and use waterproof rubber for outdoor applications.
Applications
- Corner mounting of PTZ speed dome CCTV cameras
- Commercial security surveillance installations
- Industrial and warehouse security systems
- Outdoor building-corner surveillance
- CCTV installations requiring an integrated junction box
Standards & Compliance
- AS/NZS 62676.4:2026 is relevant to the planning, installation, testing, commissioning and maintenance of CCTV systems; Hikvision does not state separate product compliance for this passive mounting bracket.
Environmental Benefits
- Aluminium alloy and steel components are recyclable at end of service life
- Durable metal construction and surface treatment can extend service life and reduce replacement waste
- Passive mounting accessory requires no ongoing electrical power during operation
Warranty Information
Hikvision Australia publishes a five-year warranty programme for specified premium project-oriented product lines; this mounting bracket is not listed in that programme. Confirm the applicable warranty with the authorised Australian distributor or reseller.
Available Now
Available through Hikvision and authorised Australian CCTV and security equipment distributors.
