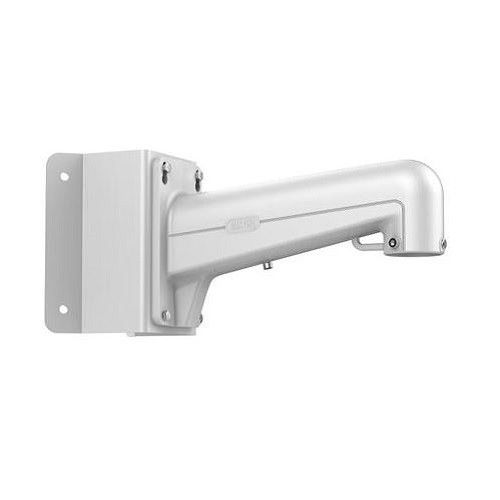

Corner Mount Bracket to Suit PTZ Camera Hikvision
Hikvision corner mount bracket for PTZ cameras features a fixing for external wall corners. Ideal for CCTV installs with PTZ cameras.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PTZ Corner Mount, Speed Dome Corner Bracket, Hikvision Corner Mount Adapter
Technical Specifications
- Application: External wall-corner mounting for Hikvision PTZ and speed-dome cameras
- Material: Aluminium alloy and steel
- Finish: Hikvision white with surface spray treatment
- Maximum Load: 10 kg
- Installation Surface: Solid, flat wall capable of supporting at least three times the combined camera and bracket weight
- Cable Management: Integrated routing provision for camera cabling
- Dimensions (H x L x W): 417.8mm x 194mm x 176.8mm
- Weight: 2.809 kg
Key Features
- Designed for Hikvision PTZ and speed-dome camera installations
- Enables camera mounting on external building corners
- Supports wider surveillance coverage across adjacent walls
- Heavy-duty aluminium alloy and steel construction
- White finish for a discreet, coordinated installation
- Suitable for outdoor CCTV installations when correctly sealed and installed
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or security installer. Confirm the wall structure can support at least three times the combined camera and bracket weight, use appropriate masonry fixings, and provide weather sealing for outdoor installations.
Applications
- External building-corner mounting of Hikvision PTZ cameras
- Commercial and industrial CCTV systems
- Retail, warehouse and car-park surveillance
- Residential and strata security camera installations
Standards & Compliance
- AS/NZS 62676.1.1:2020 is relevant to the design and installation context of CCTV/video surveillance systems; the bracket itself is a passive mounting accessory and is not identified as independently certified to this standard.
Environmental Benefits
- Aluminium alloy and steel components are recyclable at end of service life
- Durable construction can extend service life and reduce replacement waste
- Supports installation of surveillance equipment without requiring additional structural support hardware when correctly specified
Warranty Information
Three-year Hikvision ANZ manufacturer warranty where supplied through an authorised Australian distributor; confirm warranty terms at purchase.
Available Now
Available through Hikvision and authorised Australian security and CCTV distributors.
