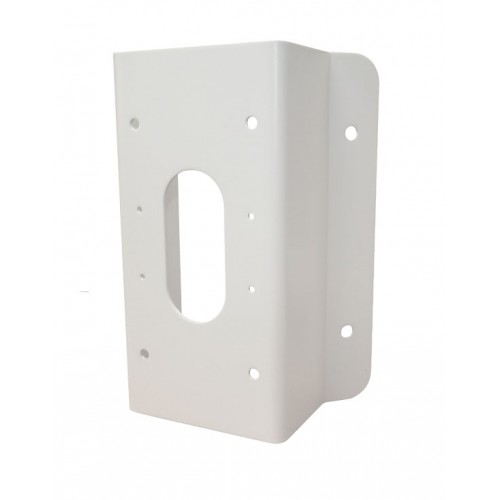

Corner Mount Bracket White DS-1476ZJ-SUS Hikvision
Hikvision corner mount bracket features a white finish. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision CCTV Corner Bracket, Security Camera Corner Mount, DS-1476ZJ-SUS Corner Mount
Technical Specifications
- Product Type: CCTV camera corner mount bracket
- Material: Stainless steel
- Finish: Hikvision White
- Mounting Type: 90-degree corner mount
- Maximum Load Capacity: 10 kg
- Compatibility: Compatible Hikvision CCTV camera and wall-mount accessories
- Outdoor Use: Suitable for indoor and outdoor installation when correctly sealed
- Cable Management: Cable pass-through design
- Dimensions (H x L x W): 250mm x 105mm x 126mm
- Weight: 2.28 kg
Key Features
- Designed for mounting compatible Hikvision CCTV cameras on building corners
- White finish to match Hikvision camera and mounting accessories
- Stainless steel construction for durability and corrosion resistance
- Supports camera and accessory loads up to 10 kg
- Suitable for indoor and outdoor security installations
- Cable pass-through helps maintain a neat installation
Professional Installation Requirements
- No licensed trade qualification is specifically required for the passive bracket. Installation should be completed by a competent security or cabling installer using suitable anchors and fasteners; confirm that the wall can support at least three times the combined camera and bracket weight.
Applications
- Corner mounting of Hikvision bullet and compatible CCTV cameras
- Commercial security camera installations
- Residential CCTV systems
- Outdoor building-perimeter surveillance
- Industrial and infrastructure security installations
Environmental Benefits
- Stainless steel is durable and recyclable, supporting long service life and reduced replacement waste
- Robust construction can reduce maintenance frequency and material consumption over the product lifespan
Warranty Information
A 36-month warranty is listed by distributors for this model. Hikvision's published five-year warranty schedule applies to specified premium camera, recorder, storage and thermal product lines, not this mounting accessory; confirm the applicable warranty with the authorised Australian distributor.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors.
