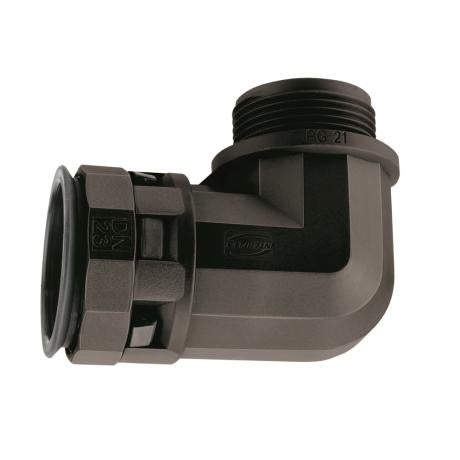

Corrugated Conduit Fitting Nylon M16 90Deg | IP66 Rated | Easy-Click Assembly | by Wattmaster
The Corrugated Conduit Fitting Nylon M16 90Deg is designed for terminating flexible corrugated conduits, featuring IP66 protection and a durable polyamide construction. Ideal for electrical installations, this fitting ensures reliable sealing and high tensile strength, making it perfect for control panels and terminal boxes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Corrugated Conduit Fitting Nylon M16 90Deg | IP66 Rated | Easy-Click Assembly | by Wattmaster
Brand: Wattmaster
SKU: ALCNEC-12M16N
Alternatively Known As: Nylon Corrugated Conduit Fitting 16mm 90 Degree, Flexible Conduit Connector, Nylon Cable Gland 90°
Technical Specifications
- Material: Polyamide (Nylon 6)
- Size: M16
- Angle: 90 degrees
- Protection Rating: IP66 or IP68/IP69K with sealing ring and washer
- Temperature Range: -40°C to +105°C (150°C short term)
- Self-extinguishing and flame resistant
- High tensile strength
- Easy-click quick assembly and removal
- Dimensions (H x L x W): 20mm x 30mm x 20mm
- Weight: 0.1 kg
Key Features
- Manufactured from high-quality polyamide (Nylon 6)
- IP66 protection or IP68/IP69K protection with ORJ sealing ring and PLJ sealing washer
- Halogen, Phosphorus and Cadmium free
- Heat shock resistant and flame resistant
- Self-extinguishing
- “Easy-click” quick assembly and removal
- High tensile strength and watertight
- Locknuts sold separately
- Temperature range: -40°C to +105°C (150°C short term)
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sealing.
Applications
- Terminating ends of flexible corrugated conduits
- Cable entries on control panels
- Terminal boxes
- Electric motors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen, Phosphorus and Cadmium free materials reduce environmental impact
- Durable and flame resistant design extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Corrugated Conduit Fitting Nylon M16 90Deg is available for immediate purchase, ideal for electrical conduit installations requiring durable and reliable fittings.
