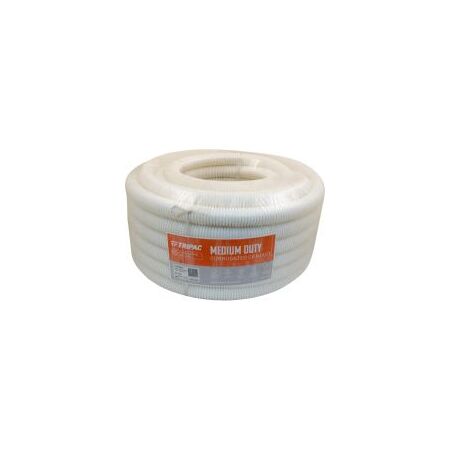

Corrugated Conduit Medium Duty 50mm x 10m White Tripac
Tripac corrugated conduit features 50mm diameter, 10m length and medium duty white electro-insulating construction. Ideal for flexible indoor cable protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: White communications corrugated conduit, flexible PVC conduit, electro-insulating corrugated conduit, Tripac CCW5010
Technical Specifications
- Nominal Diameter: 50 mm
- Internal Diameter: 42 mm
- Length: 10 m
- Material: Polyvinyl chloride (PVC)
- Colour: White
- Duty Rating: Medium duty
- Operating Temperature: -5°C to 60°C
- Compression Strength: Greater than 750 N
- UV Resistance: UV stabilised
- Flame Behaviour: Non-flame propagating
- Electrical Properties: Electro-insulating
- Environmental Certification: Best Environmental Practice (BEP) certified
- Composition: Lead and mercury free
- Dimensions (H x L x W): 170mm x 500mm x 500mm
- Weight: 2.7 kg
Key Features
- Flexible corrugated construction for complex cable routes
- Protects and conceals telecommunications and data cabling
- Suitable for commercial and residential electrical installations
- Resistant to impact, water, weather, chemicals and corrosive environments
- UV stabilised for improved resistance to sunlight degradation
- Medium-duty construction for above-ground and indoor applications
- Compatible with suitable 50mm conduit fittings and saddles
Professional Installation Requirements
- No specialist installation is required for the passive conduit itself. Where used as part of an electrical installation, installation and cable work should be completed by a suitably licensed electrical contractor in accordance with applicable wiring rules and manufacturer instructions.
Applications
- Protection and routing of telecommunications cabling
- Protection and routing of data cabling
- Commercial electrical installations
- Residential electrical installations
- Indoor cable management and service routing
- Above-ground cabling applications
Standards & Compliance
- AS/NZS 61386.1:2015 with Amendment 1:2019 for general conduit system requirements
- AS/NZS 61386.23:2022 for flexible conduit systems
Environmental Benefits
- BEP certified PVC product supporting environmentally responsible PVC manufacture
- Lead and mercury free construction
- PVC material can be recovered through appropriate recycling processes
- Durable construction can reduce replacement frequency and installation waste
Warranty Information
Specific warranty duration is not published in the available Tripac product information. Warranty claims are subject to the applicable Cabac or authorised distributor terms and conditions.
Available Now
Available through Tripac, Cabac and authorised Australian electrical distributors.
