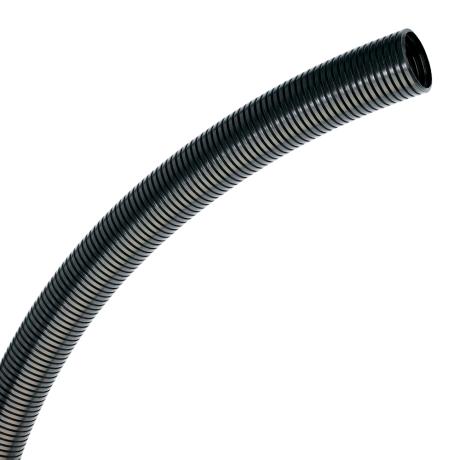

Corrugated Conduit Nylon 40mm | IP68/IP69K Rated | UV & Flame Resistant | by Wattmaster
Corrugated conduit nylon 40mm is designed for superior cable protection, featuring an IP68/IP69K rating and made from specially modified Nylon 6. Ideal for commercial and industrial electrical installations, this conduit ensures mechanical protection and environmental preservation, while being UV resistant and free from hazardous substances.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Corrugated Conduit Nylon 40mm | IP68/IP69K Rated | UV & Flame Resistant | by Wattmaster
Brand: Wattmaster
SKU: ALCAGT-36N
Alternatively Known As: Nylon Corrugated Conduit, Flexible Nylon Conduit, Cable Protection Conduit, Nylon Cable Duct
Technical Specifications
- Material: Specially modified Nylon 6 (Polyamide)
- Diameter: 40mm
- Length: 30 meters per roll
- IP Rating: IP68/IP69K with O-Ring
- Standards: Approved to AS/IEC 60204-1 (Safety for machinery)
- UV resistant, heat and flame resistant
- Halogen, Phosphorus, and Cadmium free
- RoHS Compliant
- Dimensions (H x L x W): 40mm x 30000mm x 40mm
- Weight: 1.5 kg
Key Features
- Provides insulation, mechanical protection, and environmental preservation for cables
- Made from specially modified Nylon 6 for durability
- Patented profile ensures IP68/IP69K rating with simple O-Ring
- UV resistant and free from Halogen, Phosphorus, and Cadmium
- Heat and flame resistant
- RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Commercial electrical installations
- Industrial electrical installations
- Telecommunication cable protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- UV resistant material extends product life reducing waste
- Halogen, Phosphorus, and Cadmium free for safer environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for details.
Available Now
Wattmaster Corrugated Nylon Conduit 40mm x 30m Roll Black is available for immediate purchase, ideal for commercial, industrial, and telecommunication cable protection applications.
