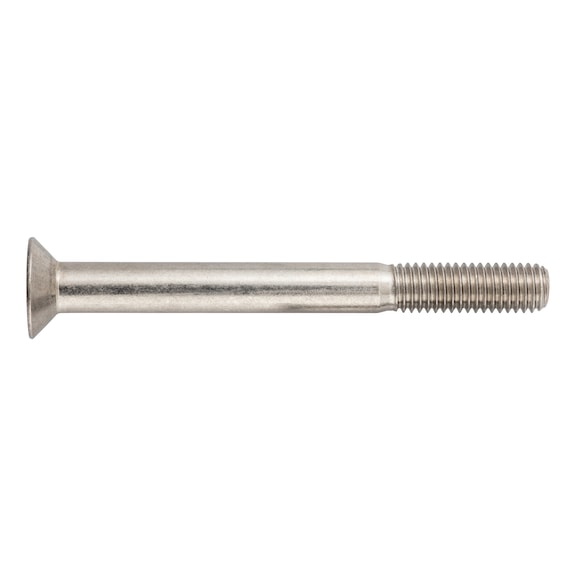

Countersunk Head Screw ISO 10642 | A2-070 Stainless Steel | Hexagon Socket Drive | Plain Finish | @Pack of 25 | by Wurth
Countersunk head screw ISO 10642 made from A2-070 stainless steel with a hexagon socket drive is perfect for mechanical fastening applications. Designed for durability and corrosion resistance, this screw features a plain finish and partial threading, making it ideal for machinery, automotive, and construction uses where compliance with ISO standards is essential.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Countersunk Head Screw ISO 10642 | A2-070 Stainless Steel | Hexagon Socket Drive | Plain Finish | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 100450
Alternatively Known As: Hex Socket Countersunk Screw, ISO 10642 Countersunk Screw, Stainless Steel Countersunk Hex Screw, Metric Countersunk Head Screw
Technical Specifications
- Thread type x nominal diameter (d1): M4
- Length (l1): 50 mm
- Head diameter (dk): 7.96 mm
- Head height (k1): 2.48 mm
- Internal drive (s1): HS2.5
- Standards: ISO 10642
- Material: Stainless steel A2
- Property class: 070
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Countersunk head
- Drive type: Hexagon socket
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Product class: A
- Dimensions (H x L x W): 2.48mm x 50mm x 7.96mm
- Weight: 0.02 kg
Key Features
- Countersunk head geometry with limited load capacity as per ISO 10642
- Complies with ISO 3506-1 mechanical properties for stainless steel
- Partial threading almost up to the head
- Hexagon socket drive for secure fastening
- Made from stainless steel A2 with property class 070
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper torque and load capacity adherence.
Applications
- General mechanical fastening requiring countersunk head screws
- Applications needing corrosion-resistant stainless steel fasteners
- Use in machinery, automotive, and construction where ISO 10642 compliance is required
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from stainless steel which is recyclable and corrosion resistant, reducing replacement frequency
- RoHS-compliant ensuring no hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for mechanical fastening applications requiring stainless steel countersunk screws.
