Countersunk Head Timber Screw | Full-Thread Design | High Load Capacity | Zinc Plated | @Pack of 50 | by Wurth

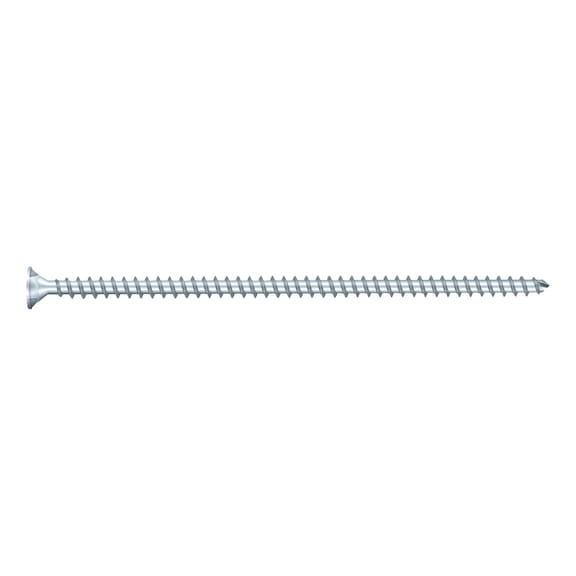

The ASSY®plus FT countersunk head timber screw is designed for high load-bearing capacity with its full-thread design and drilling tip. Ideal for timber construction and carpentry, this screw is perfect for structural reinforcements and metal connections. Its plastic non-friction coating ensures easy screwing and reduced torque, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Countersunk Head Timber Screw | Full-Thread Design | High Load Capacity | Zinc Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 165410160
Alternatively Known As: Countersunk timber screw, Structural wood screw, Full-thread wood screw, Wood construction screw, Zinc plated timber screw
Technical Specifications
- Dimensions (H x L x W): 6.5mm x 160mm x 20mm
- Weight: 0.056 kg
Key Features
- Full-thread wood screw with drilling tip for high load-bearing capacity
- Countersunk head ideal for lateral compression reinforcements and metal connections
- Very high load capacity with very small edge distances (pre-drilled)
- Pre-drilling option permitted with screw-in angle from 0° to 90°
- Approved for hardwood, KERTO/LVL, board plywood, and other wooden materials
- Plastic non-friction coating for easy screwing and reduced torque
- Material: Hardened steel, zinc plated (galvanised, blue passivated)
- Symmetrical full thread and single start thread design
- Recommended to combine with angled washer 45°AW® drive for enhanced force transmission
- Uniform force distribution prevents damage to surface coating
- RoHS-compliant
Professional Installation Requirements
- Professional installation recommended for structural applications to ensure compliance with building standards and safety.
Applications
- Timber construction
- Carpentry
- Timber house and element construction
- Structural reinforcements (lateral compression and lateral tensile) for beams
- Static connection of a second wooden cross-section
- Wooden/concrete composite floors
- On rafter insulation
- Roof
- Element construction
- Timber panel construction
- Interior fitting
- Structural woodwork
- Metal wood connections
- Lateral compression reinforcement
- Tensile shear connection
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Warranty details available upon request from Wurth; product quality guaranteed by manufacturer.
Available Now
The Wurth ASSY®plus FT countersunk head timber screw 50 PCS is available for immediate purchase, ideal for timber construction, carpentry, and structural reinforcement applications.
