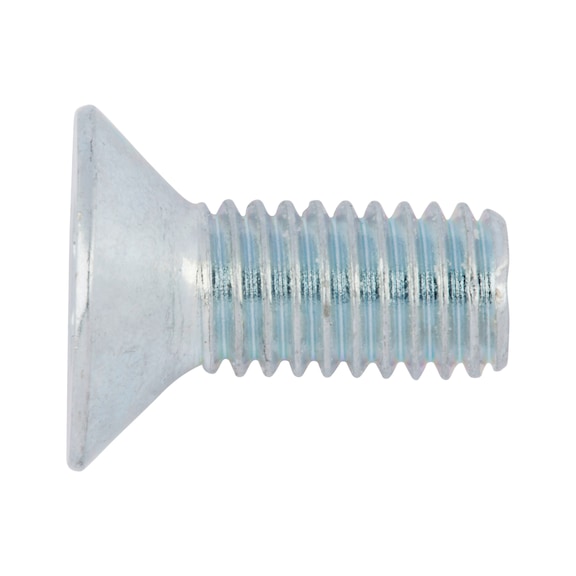

Countersunk Screw with Hexalobular Head ISO 14581 | Blue Passivated Zinc Plated | 8.8 Steel | @Pack of 100 | by Wurth
Countersunk screw with hexalobular head ISO 14581, designed for secure fastening in mechanical assemblies. Made from durable 8.8 steel and blue passivated zinc plated for corrosion resistance, this screw is ideal for industrial machinery, automotive, and aerospace applications. Its TX10 drive ensures optimal force distribution, preventing tool slippage and surface damage during installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Countersunk Screw with Hexalobular Head ISO 14581 | Blue Passivated Zinc Plated | 8.8 Steel | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 40231310
Alternatively Known As: Hexalobular countersunk screw, TX10 countersunk screw, ISO 14581 screw, hex socket screw, Torx countersunk screw
Technical Specifications
- Thread type x nominal diameter (d1): M3
- Length (l1): 10 mm
- Head diameter (dk): 5.5 mm
- Head height (k1): 1.65 mm
- Standards: ISO 14581
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Countersunk head
- Drive type: Internal hexalobular
- Internal drive: TX10
- Thread type: Metric thread
- Pitch: 0.5 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 1.65mm x 10mm x 5.5mm
- Weight: 0.005 kg
Key Features
- Hexalobular (TX) drive transmits force over a large surface area across the flanks of the drive, reducing tool wear.
- Tool does not slip due to optimal force distribution.
- No damage to surface coating during installation.
- No wobbling; screw locates securely.
- Complies with DIN EN ISO 10664 standard for hexalobular drives.
- Standardized connection elements usable worldwide.
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assembly requiring secure fastening
- Industrial machinery and equipment
- Automotive and aerospace component assembly
- General purpose fastening in metal and plastic parts
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances.
- Durable zinc plating extends product life and reduces replacement frequency.
Warranty Information
Wurth standard warranty against manufacturing defects applies.
Available Now
Available for immediate purchase, ideal for industrial and mechanical assembly applications.
