Countersunk Screw with Hexalobular Head ISO 14581 | Blue Passivated Zinc Plated | 8.8 Steel | @Pack of 100 | by Wurth

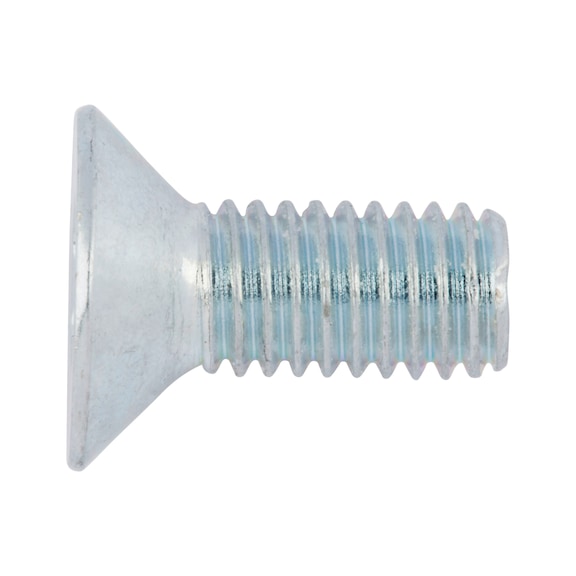

Countersunk screw with hexalobular head ISO 14581, designed for secure fastening in mechanical assemblies. Made from durable 8.8 steel and blue passivated zinc plated for corrosion resistance, this screw ensures optimal force distribution and prevents surface damage during installation. Ideal for industrial machinery, automotive, and aerospace applications, it provides a flush mount for a clean finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Countersunk Screw with Hexalobular Head ISO 14581 | Blue Passivated Zinc Plated | 8.8 Steel | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 40231316
Alternatively Known As: Hexalobular countersunk screw, TX10 countersunk screw, ISO 14581 screw, Zinc plated countersunk screw, Metric thread countersunk screw

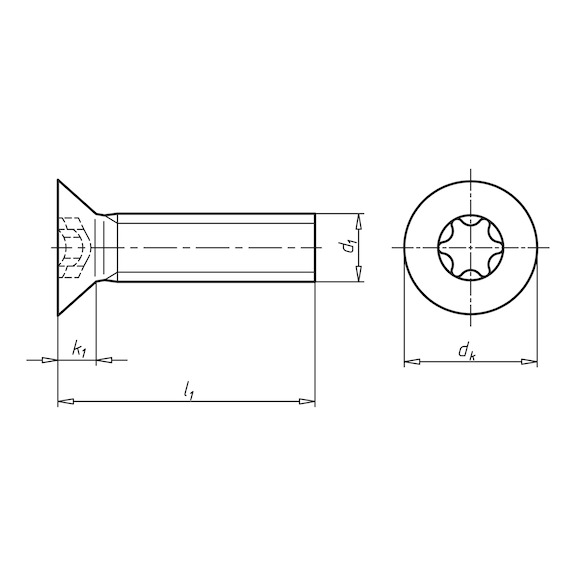

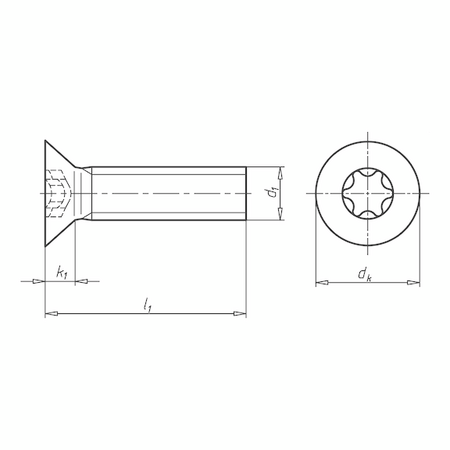

Technical Specifications
- Thread type x nominal diameter (d1): M3
- Length (l1): 16 mm
- Head diameter (dk): 5.5 mm
- Head height (k1): 1.65 mm
- Standards: ISO 14581
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Countersunk head
- Drive type: Internal hexalobular
- Internal drive: TX10
- Thread type: Metric thread
- Pitch: 0.5 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 1.65mm x 16mm x 5.5mm
- Weight: 0.01 kg
Key Features
- Hexalobular (TX) drive transmits force over a large surface area across the flanks of the drive, reducing tool wear and preventing slipping.
- No damage to surface coating due to optimal force distribution.
- Secure screw location with no wobbling during installation.
- Complies with DIN EN ISO 10664 for hexalobular drives ensuring global standardization.
- Countersunk head design for flush mounting.
Professional Installation Requirements
- Installation should be performed by trained personnel using the correct TX10 hexalobular driver to ensure proper fastening and avoid damage.
Applications
- Mechanical assembly requiring secure fastening
- Industrial machinery and equipment
- Automotive and aerospace components
- General engineering and construction
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances.
- Durable zinc plating extends product life reducing waste.
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Countersunk Screw with Hexalobular Head ISO 14581 M3 x 16mm Zinc Plated Steel 8.8 is available for immediate purchase. Ideal for industrial and mechanical assembly applications.
