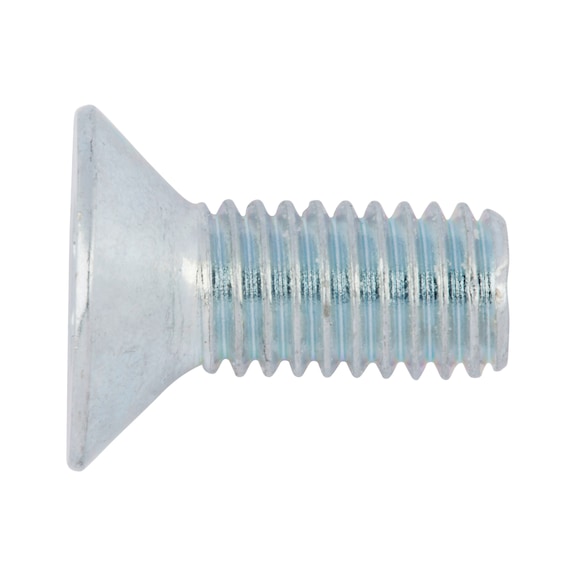

Countersunk Screw ISO 14581 | Hexalobular TX10 Drive | Blue Passivated Zinc Plated | @Pack of 100 | by Wurth
Countersunk screws ISO 14581 with a hexalobular TX10 drive and blue passivated zinc plating are perfect for secure fastening in mechanical assemblies. Designed for industrial machinery and automotive applications, these screws ensure optimal force distribution, reducing tool wear and preventing surface damage during installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Countersunk Screw ISO 14581 | Hexalobular TX10 Drive | Blue Passivated Zinc Plated | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 4023136
Alternatively Known As: Hexalobular countersunk screw, TX10 countersunk screw, ISO 14581 screw, Zinc plated countersunk screw M3, Internal hexalobular screw

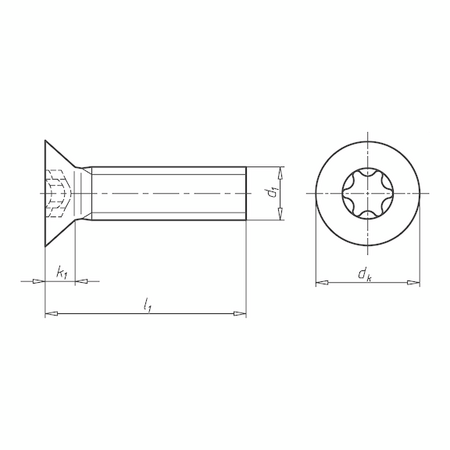

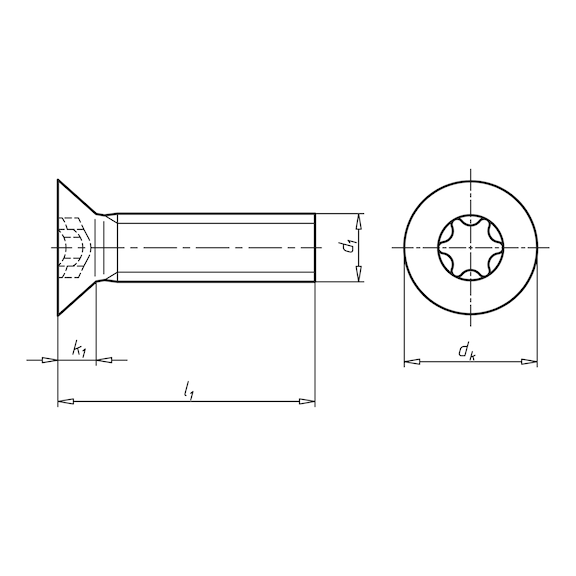

Technical Specifications
- Thread type x nominal diameter (d1): M3
- Length (l1): 6 mm
- Head diameter (dk): 5.5 mm
- Head height (k1): 1.65 mm
- Standards: ISO 14581
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Countersunk head
- Drive type: Internal hexalobular
- Internal drive: TX10
- Thread type: Metric thread
- Pitch: 0.5 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 1.65mm x 6mm x 5.5mm
- Weight: 0.005 kg
Key Features
- Hexalobular (TX) drive transmits force over a large surface area across the flanks of the drive, reducing tool wear.
- Tool does not slip due to optimal force distribution.
- No damage to surface coating during installation.
- No wobbling; screw locates securely.
- Complies with DIN EN ISO 10664 for hexalobular drives.
- Standardized connection elements usable worldwide.
Professional Installation Requirements
- Installation by a qualified technician or professional is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assembly requiring secure fastening
- Industrial machinery and equipment
- Automotive and aerospace component assembly
- General purpose fastening in metal and plastic parts
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances.
- Durable zinc plating extends product life, reducing waste.
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
Available for immediate purchase, ideal for industrial and mechanical assembly applications.
