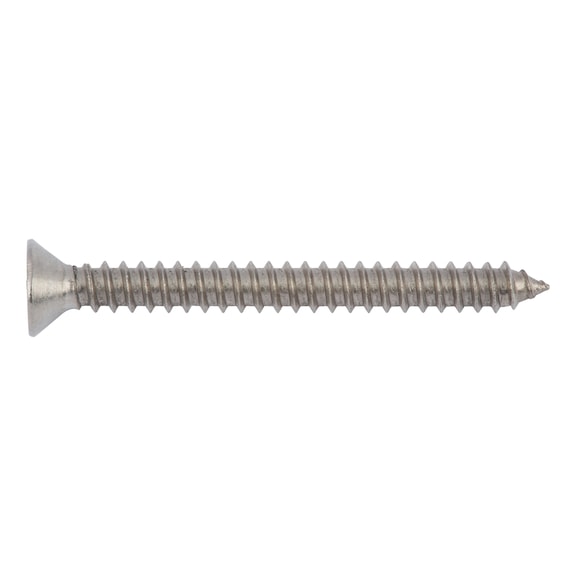

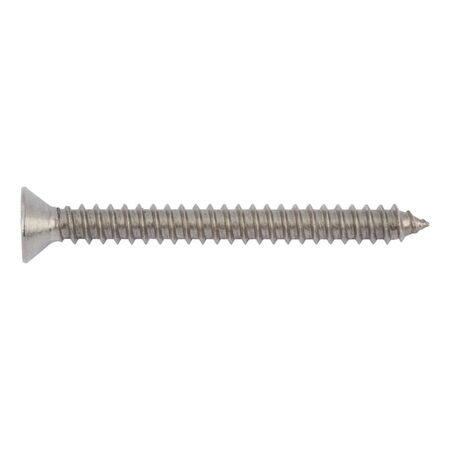

Countersunk Tapping Screw AW Drive | A2 Stainless Steel | 250 PCS | by Wurth
Countersunk tapping screws with AW drive are perfect for general fastening applications, offering enhanced torque transmission and corrosion resistance. Made from A2 stainless steel, these screws ensure a longer service life and optimum centering for better mounting output. Ideal for use in construction, manufacturing, and maintenance tasks, they are suitable for metal, plastic, and wood materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Countersunk Tapping Screw AW Drive | A2 Stainless Steel | 250 PCS | by Wurth
Brand: Wurth
SKU: 12393519
Alternatively Known As: Self-tapping screw, Countersunk screw, AW drive screw, Stainless steel tapping screw
Technical Specifications
- Material: Stainless steel A2
- Surface: Plain
- RoHS-compliant: Yes
- Form: C
- Nominal diameter: 3.5 mm
- Length: 19 mm
- Head diameter: 6.8 mm
- Head height: 2.5 mm
- Internal drive: AW10
- Drive type: AW
- Head type: Countersunk head 80 degree
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Shape of tip: C
- Dimensions (H x L x W): 2.5mm x 19mm x 6.8mm
- Weight: 0.05 kg
Key Features
- Enhanced torque transmission with AW drive system
- Longer service life due to fatigue-free screwing-in
- Optimum centring for better mounting output
- Even force distribution prevents damage to surface-protection coating
- Better resistance to corrosion
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper torque application and secure fastening.
Applications
- General fastening applications requiring corrosion-resistant screws
- Suitable for metal, plastic, and wood materials
- Ideal for construction, manufacturing, and maintenance tasks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from stainless steel A2 which is recyclable and corrosion resistant, reducing replacement frequency and waste
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth Countersunk Tapping Screw with AW Drive in A2 Stainless Steel is available now for immediate purchase. Ideal for construction, manufacturing, and maintenance applications.
