Trade Discount 20%

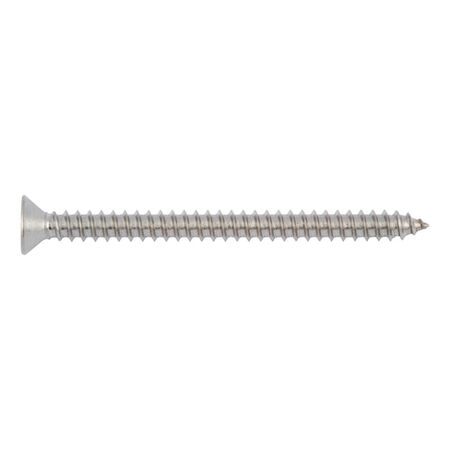

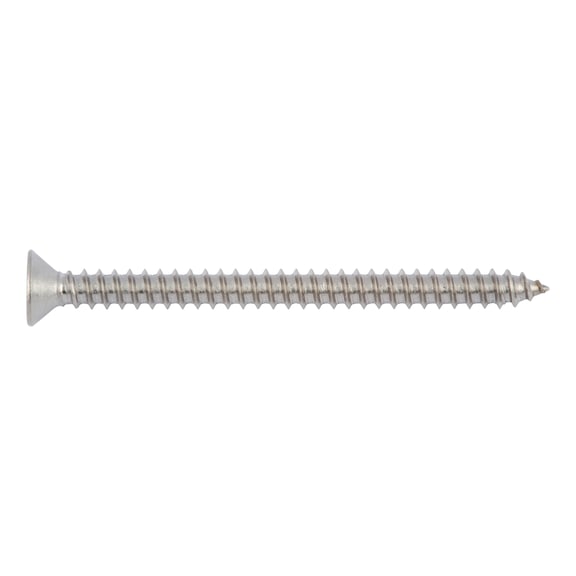

Countersunk Tapping Screw Shape C | A4 Stainless Steel | H Recessed Head | Plain Finish | @Pack of 50 | by Wurth
Countersunk tapping screw shape C made from A4 stainless steel offers excellent corrosion resistance and a flush mounting design with an 80-degree angle head. Ideal for general fastening applications in outdoor and marine environments, this screw features a secure H recessed drive for easy installation, making it perfect for assembling metal, plastic, and wood components.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Countersunk Tapping Screw Shape C | A4 Stainless Steel | H Recessed Head | Plain Finish | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 12723519
Alternatively Known As: Self-tapping screw, Countersunk screw, DIN 7982 screw, Stainless steel tapping screw
Technical Specifications
- Material: Stainless steel A4
- Surface: Plain
- RoHS-compliant: Yes
- Form: C
- Nominal diameter (d1): 3.5 mm
- Length (l1): 19 mm
- Head diameter (dk): 6.8 mm
- Head height (k1): 2.1 mm
- Internal drive: H2
- Drive type: H
- Head type: Countersunk head 80 degree
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Shape of tip: C
- Dimensions (H x L x W): 2.1mm x 19mm x 6.8mm
- Weight: 0.01 kg
Key Features
- Made from stainless steel A4 for excellent corrosion resistance
- Countersunk head with 80-degree angle for flush mounting
- H recessed internal drive (H2) for secure and easy installation
- Full self-tapping screw thread for strong fastening
- Plain surface finish
Professional Installation Requirements
- Installation should be performed by a qualified professional using appropriate tools for H recessed drive screws to ensure secure fastening.
Applications
- General fastening applications requiring corrosion-resistant screws
- Outdoor and marine environments due to stainless steel A4 material
- Assembly of metal, plastic, and wood components
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel material reduces need for frequent replacements
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for corrosion-resistant fastening in construction, manufacturing, and maintenance applications.
