Trade Discount 21%

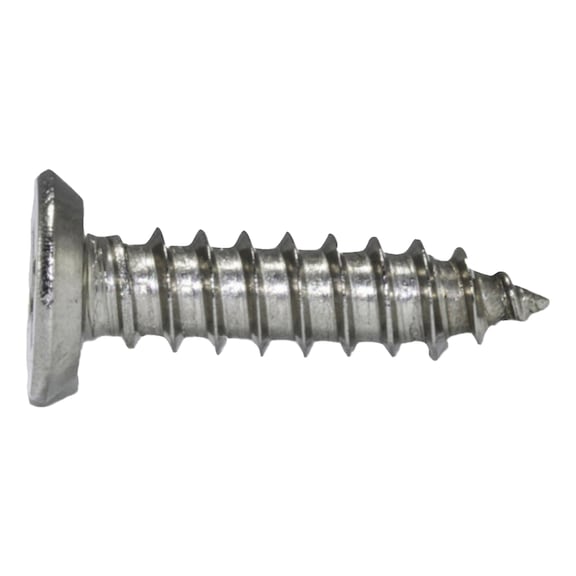

Countersunk Undercut A2 Stainless Steel Self-Tapping Screw | Reduced Head Size | Flat Countersunk Head | @Pack of 100 | by Wurth
Countersunk Undercut A2 Stainless Steel Self-Tapping Screws are designed for precision fastening in timber, metal, and aluminum applications. With a reduced head size and flat countersunk design, these screws provide a flush finish, making them ideal for low-profile work pieces. The pointed tip allows for easy self-tapping, ensuring a secure fit without the need for pre-drilling in most materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Countersunk Undercut A2 Stainless Steel Self-Tapping Screw | Reduced Head Size | Flat Countersunk Head | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 192894813
Alternatively Known As: Self-tapping countersunk screws, undercut stainless steel screws, flat head self-tapping screws, reduced head screws

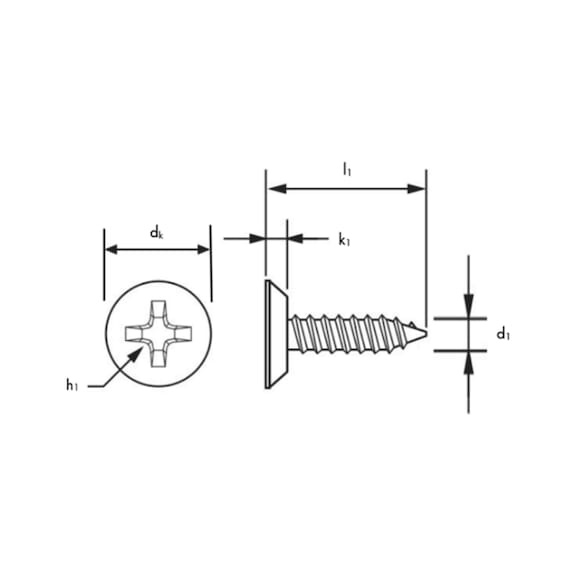

Technical Specifications
- Material: Stainless steel AISI 304, 18-8
- Standard: ASME B18.6.3
- Surface finish: Plain
- Head type: Flat countersunk head
- Tip shape: Pointed
- Nominal diameter: 4.8 mm
- Length: 12.7 mm
- Head diameter: 7.8 mm
- Head height: 1.49 mm
- Internal drive: H2 recessed
- Dimensions (H x L x W): 1.49mm x 12.7mm x 7.8mm
- Weight: 0.02 kg
Key Features
- Made from A2 stainless steel (AISI 304, 18-8)
- Flat countersunk head with recessed H2 drive
- Reduced head size allows use of larger diameter screws in lower profile work pieces
- Undercut design provides a flat bottom under the head for a more flush finish
- Pointed tip for self-tapping
- Can be used with pre-drilling in metal and aluminium
Professional Installation Requirements
- Installation by a skilled tradesperson or professional recommended to ensure correct pre-drilling and fastening technique.
Applications
- Suitable for use in timber, metal, and aluminium applications
- Ideal for hinge plates to prevent lifting when screwed onto work pieces
- Used in low profile work pieces requiring flush finish screws
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from corrosion-resistant stainless steel for long product life and reduced replacement waste
- Durable material reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Countersunk Undercut A2 Stainless Steel Self-Tapping Screws are available for immediate purchase, ideal for construction, cabinetry, and metal fabrication applications.
