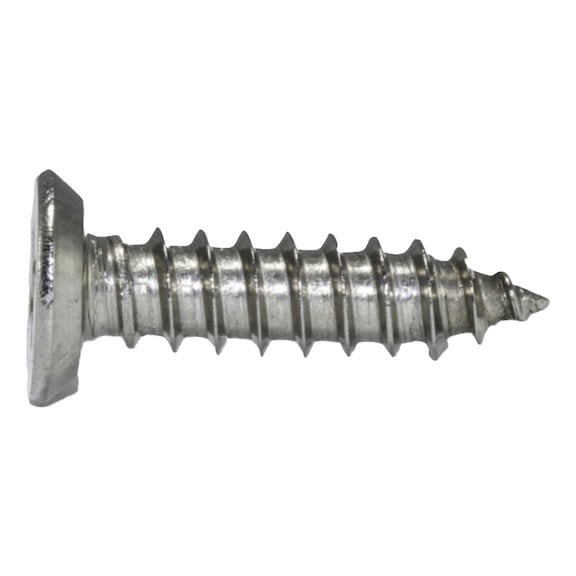

Countersunk Undercut Zinc Plated Self-Tapping Screws | Corrosion Resistant | H Recessed Head | Flush Finish | @Pack of 100 | by Wurth
Countersunk Undercut Zinc Plated Self-Tapping Screws are designed for reliable fastening in timber, metal, and aluminum applications. With a corrosion-resistant zinc plated finish and a unique undercut design for a flush finish, these screws are ideal for hinge plates and general fastening needs. The pointed tip ensures easy self-tapping, making them perfect for both professionals and DIY enthusiasts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Countersunk Undercut Zinc Plated Self-Tapping Screws | Corrosion Resistant | H Recessed Head | Flush Finish | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 192804213
Alternatively Known As: Zinc Plated Self-Tapping Screws, Undercut Countersunk Screws, H Recessed Head Screws, Flush Finish Screws
Technical Specifications
- Material: Steel
- Standard: ASME B18.6.3
- Surface: Zinc plated
- Head type: Flat countersunk head
- Shape of tip: Pointed

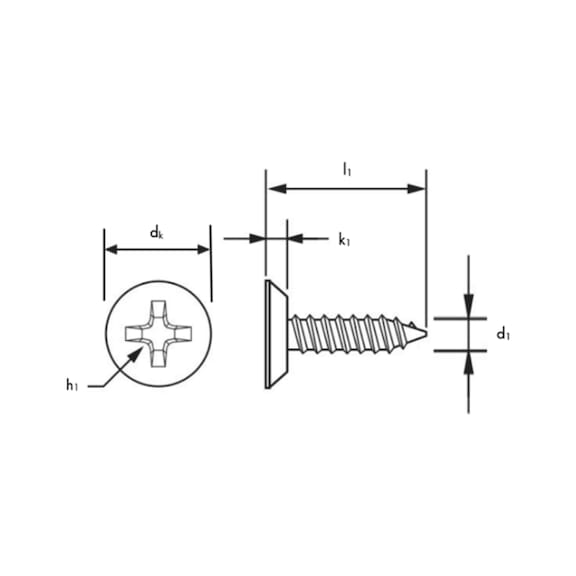

- Nominal diameter (d1): 4.2 mm
- Length (l1): 12.7 mm
- Head diameter (dk): 7.5 mm
- Head height (k1): 1.53 mm
- Internal drive (h1): H2
- Dimensions (H x L x W): 1.53mm x 12.7mm x 7.5mm
- Weight: 0.05 kg
Key Features
- Silver zinc plated finish for corrosion resistance
- Undercut screws with flat bottom under the head for a more flush finish than standard countersunk screws
- H recessed head for secure driving
- Pointed tip for easy self-tapping
- Can be used with hinge plates without lifting the plate
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and avoid damage to materials.
Applications
- Suitable for use in timber, metal, and aluminium applications
- Ideal for hinge plates to prevent lifting when screwed onto work pieces
- General fastening applications requiring a flush finish
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance, extending product life and reducing waste
- Durable design reduces the need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; refer to Wurth for details.
Available Now
Wurth Countersunk Undercut Zinc Plated Self-Tapping Screws 100 pcs are available now for immediate purchase. Ideal for construction, woodworking, and metalworking applications.
