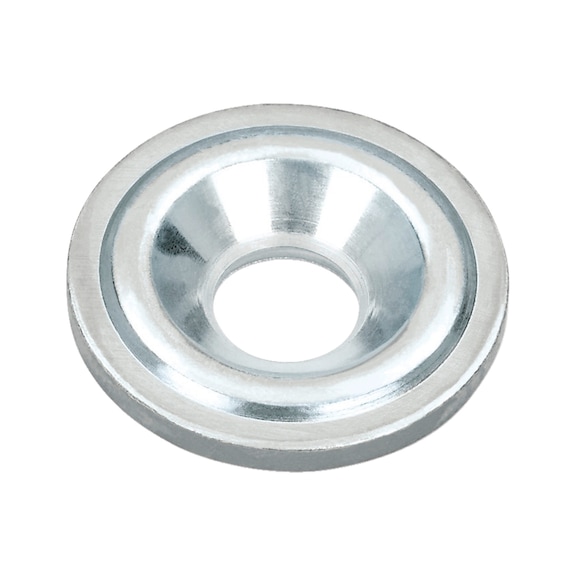

Countersunk Washer Deep Zinc Plated Blue | Solid Steel | 90° Head Penetration Resistance | @Pack of 100 | by Wurth

BRAND: Wurth
SKU: 457700006
$72.40 List price: $91.00
100 PCS ($0.72 per PCS)
+ −
30 Days Return Delivery Options
Countersunk washers with solid steel construction and deep zinc plating are perfect for enhancing head penetration resistance in timber construction. Designed for structural woodwork, these washers ensure a secure fit for countersunk screws, making them ideal for various applications including timber panel construction. With a pack of 100, you’ll have plenty for your projects.

Product Name/Title: Countersunk Washer Deep Zinc Plated Blue | Solid Steel | 90° Head Penetration Resistance | @Pack of 100 | by Wurth

Brand: Wurth

SKU: 457700006

Alternatively Known As: Countersunk flat washer, Zinc plated countersunk washer, Timber construction washer

Technical Specifications
  • Internal diameter (d1): 6.5 mm
  • Outer diameter (d2): 22 mm
  • Outer diameter 2 (d3): 13 mm
  • Countersink diameter (d4): 13 mm
  • Height (h1): 3 mm
  • Washer thickness (t): 2.5 mm
  • Material: Steel
  • Surface: Zinc plated
  • Suitable for countersunk screw D 6 mm
  • Dimensions (H x L x W): 3mm x 22mm x 22mm
  • Weight: 0.05 kg
Key Features
  • Increases head penetration resistance for countersunk head screws with a 90° head
  • Solid steel construction
  • Deep contact surface embossed into the wood
Professional Installation Requirements
  • Installation should be performed by a qualified tradesperson familiar with timber construction standards.
Applications
  • Structural woodwork
  • Timber construction
  • Timber panel construction
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • RoHS-compliant material ensuring reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies.

Available Now

The Wurth Countersunk Washer Deep Zinc Plated Blue 100 PCS is available for immediate purchase, ideal for timber and structural woodwork applications.
