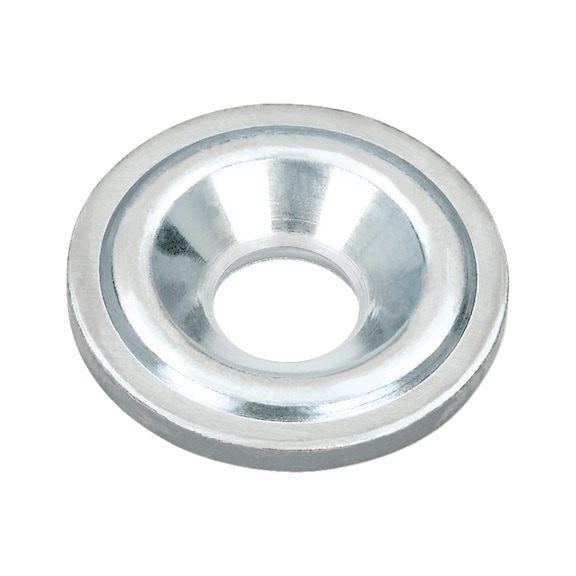

Countersunk Washer Deep Zinc Plated Blue | Solid Steel | 90° Head Penetration Resistance | @Pack of 100 | by Wurth
Countersunk washers with solid steel construction and deep zinc plating are designed to enhance head penetration resistance for countersunk screws. Ideal for structural woodwork and timber construction, these washers ensure a secure fit and durability in demanding applications. Perfect for professionals seeking reliable performance in timber panel construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Countersunk Washer Deep Zinc Plated Blue | Solid Steel | 90° Head Penetration Resistance | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 457700010
Alternatively Known As: Countersunk screw washer, Zinc plated countersunk washer, Timber construction washer
Technical Specifications
- Internal diameter (d1): 10.5 mm
- Outer diameter (d2): 33 mm
- Outer diameter 2 (d3): 19.5 mm
- Countersink diameter (d4): 19.5 mm
- Height (h1): 4.25 mm
- Washer thickness (t): 3 mm
- Material: Steel
- Surface: Zinc plated
- Suitable for countersunk screw D 10 mm
- Dimensions (H x L x W): 4.25mm x 33mm x 33mm
- Weight: 0.1 kg
Key Features
- Increases head penetration resistance for countersunk head screws with a 90° head
- Solid steel construction
- Deep contact surface embossed into the wood
Professional Installation Requirements
- Installation should be performed by a qualified professional familiar with timber construction standards to ensure proper application and safety.
Applications
- Structural woodwork
- Timber construction
- Timber panel construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Countersunk Washer deep zinc plated blue 100 PCS is available for immediate purchase, ideal for structural woodwork and timber construction applications.
