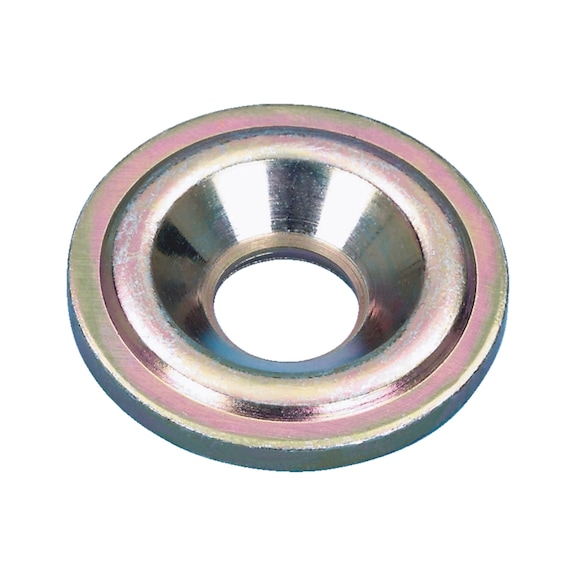

Countersunk Washer Deep Yellow Galvanised | Solid Steel | Corrosion Resistant | @Pack of 100 | by Wurth
Countersunk washer deep yellow galvanised, crafted from solid steel, is designed for timber construction and structural woodwork. Its corrosion-resistant zinc plating ensures durability, making it ideal for applications requiring enhanced head penetration resistance. Perfect for qualified tradespeople looking for reliable fastening solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Countersunk Washer Deep Yellow Galvanised | Solid Steel | Corrosion Resistant | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 45770010
Alternatively Known As: Countersunk Steel Washer, Yellow Zinc Plated Washer, Timber Construction Washer

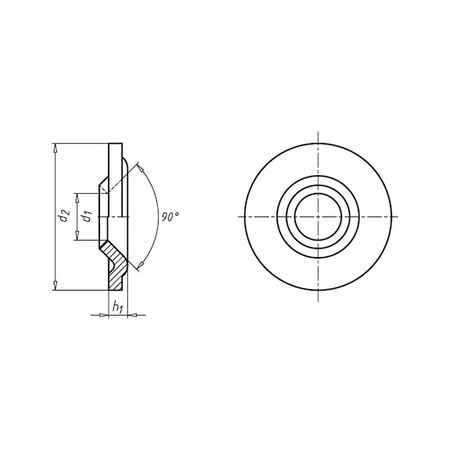

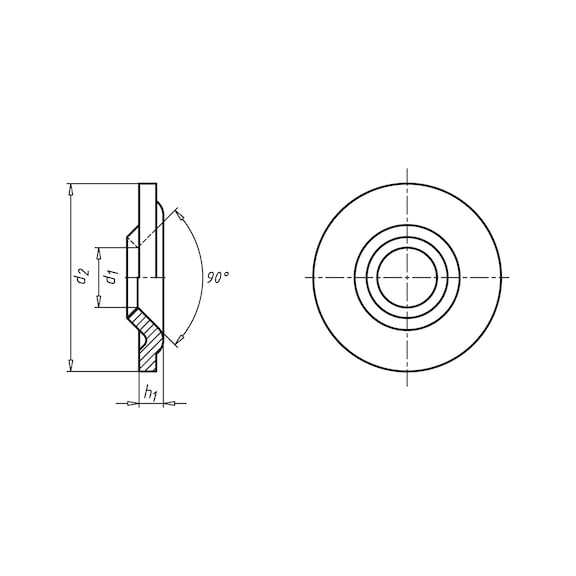

Technical Specifications
- Internal diameter (d1): 10.5 mm
- Outer diameter (d2): 33 mm
- Outer diameter 2 (d3): 19.5 mm
- Countersink diameter (d4): 19.5 mm
- Height (h1): 4.25 mm
- Washer thickness (t): 3 mm
- Material: Steel
- Surface: Zinc plated yellow
- Suitable for: Countersunk screw D 10 mm
- Dimensions (H x L x W): 4.25mm x 33mm x 33mm
- Weight: 0.1 kg
Key Features
- Increases head penetration resistance for countersunk head screws with a 90° head
- Solid steel construction
- Deep contact surface embossed into the wood
Professional Installation Requirements
- Installation by a qualified tradesperson is recommended to ensure proper fastening and structural integrity.
Applications
- Timber construction
- Timber panel construction
- Structural woodwork
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanised zinc plating provides corrosion resistance, extending product life and reducing waste.
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Countersunk Washer Deep Yellow Galvanised WSH CS A2L 105X33 100 PCS is available now for immediate purchase. Ideal for timber and structural woodwork applications.
