Coupling Reducer | CuFe2p Copper Alloy | 130 Bar Pressure Rating | Up to 150°C Temperature | by Aspen Pumps

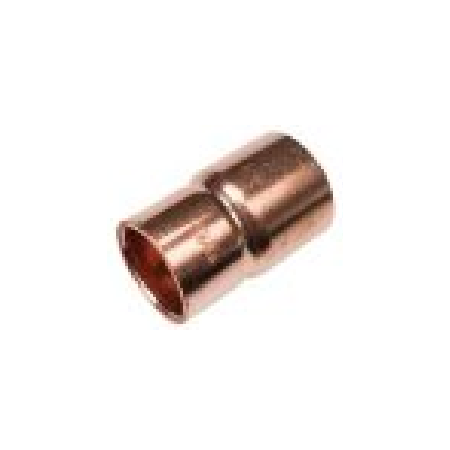

The Coupling Reducer is crafted from CuFe2p copper iron alloy, ensuring high corrosion resistance and durability. With a pressure rating of 130 bar and a temperature tolerance of up to 150°C, it's perfect for refrigeration systems using R744 refrigerant. Certified to TüV and compliant with ASTM B 280 standards, this fitting is designed for professional installation in high-pressure plumbing and HVAC applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Coupling Reducer | CuFe2p Copper Alloy | 130 Bar Pressure Rating | Up to 150°C Temperature | by Aspen Pumps
Brand: Aspen Pumps
SKU: 121-129240-13858
Alternatively Known As: Copper Coupling Reducer, High Pressure Copper Fitting, Refrigeration Coupling Reducer, CuFe2p Coupling Reducer
Technical Specifications
- Material: CuFe2p Copper Iron Alloy
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Standards Compliance: ASTM B 280, AS5149.2
- Magnetic Identification for easy verification
- Certified to TüV
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Made from CuFe2p copper iron alloy for high corrosion resistance
- Certified to TüV for quality assurance
- Suitable for use with R744 refrigerant at 130 bar and 150°C
- Compliant with ASTM B 280 and AS5149.2 standards
- Traditional brazed joining with magnetic identification
Professional Installation Requirements
- Installation should be performed by a qualified HVAC or refrigeration technician experienced with high pressure copper fittings and brazing techniques.
Applications
- Refrigeration systems using R744 (CO2) refrigerant
- High pressure plumbing and HVAC systems
- Industrial applications requiring high corrosion resistance copper fittings
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Durable copper alloy reduces need for frequent replacements, minimizing waste
- Supports use in environmentally friendly R744 refrigerant systems
Warranty Information
Warranty as per Aspen Pumps standard terms and conditions.
Available Now
Available for immediate purchase, ideal for refrigeration and HVAC high pressure copper fitting applications.
