Trade Discount 17%

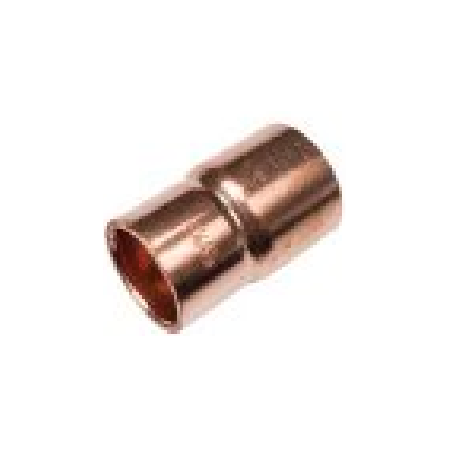

Coupling Reducer OD XID 1/2 to 3/8 XHP | CuFe2p Copper Alloy | 130 Bar Pressure Rating | by Aspen Pumps
The Coupling Reducer OD XID 1/2 to 3/8 XHP is crafted from high-quality CuFe2p copper iron alloy, ensuring exceptional corrosion resistance and durability. With a pressure rating of 130 bar and a temperature tolerance of up to 150°C, this fitting is perfect for high-pressure refrigeration systems using R744 refrigerant. Ideal for HVAC professionals, it guarantees reliable performance and compliance with industry standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Coupling Reducer OD XID 1/2 to 3/8 XHP | CuFe2p Copper Alloy | 130 Bar Pressure Rating | by Aspen Pumps
Brand: Aspen Pumps
SKU: 128-129243-1238
Alternatively Known As: Copper Coupling Reducer, High Pressure Copper Fitting, CuFe2p Coupling, Refrigeration Coupling Reducer
Technical Specifications
- Material: CuFe2p Copper Iron Alloy
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Compliance: ASTM B 280, AS5149.2
- Magnetic Identification for easy verification
- Manufactured in the EU
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Made from CuFe2p copper iron alloy for high corrosion resistance
- Certified to TüV for quality assurance
- Suitable for R744 refrigerant at 130 bar and 150°C
- Traditional brazed joining with magnetic identification
- Compliant with ASTM B 280 and AS5149.2 standards
Professional Installation Requirements
- Installation by a qualified HVAC or refrigeration technician is recommended to ensure proper brazing and system integrity.
Applications
- High pressure refrigeration systems using R744 (CO2) refrigerant
- Industrial piping requiring corrosion-resistant copper iron alloy fittings
- HVAC systems requiring reliable brazed joining fittings
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Durable copper iron alloy reduces need for frequent replacements, minimizing waste
- Supports use in environmentally friendly R744 (CO2) refrigerant systems
Warranty Information
Warranty coverage as per Aspen Pumps standard terms and conditions.
Available Now
The Aspen Pumps Coupling Reducer OD XID 1/2 to 3/8 XHP is available for immediate purchase, ideal for high pressure refrigeration and HVAC applications.
