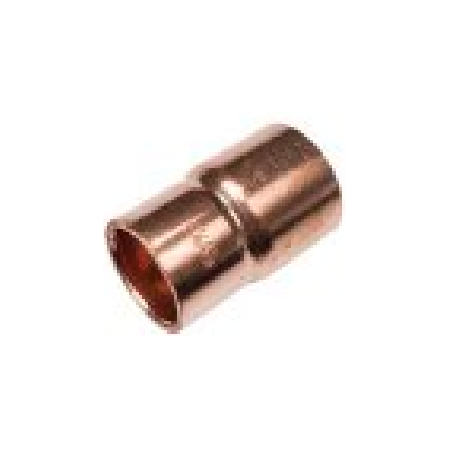

Coupling Reducer OD XID 1 3/8 X 1 1/8 | CuFe2P Copper Alloy | 130 Bar Pressure | by Aspen Pumps
The Coupling Reducer OD XID 1 3/8 X 1 1/8 is crafted from high-quality CuFe2P copper iron alloy, ensuring exceptional corrosion resistance and durability. Rated for 130 bar pressure and temperatures up to 150°C, this fitting is perfect for refrigeration systems using R744 (CO2) refrigerant and high-pressure HVAC installations. Certified to ASTM B280 and AS5149.2 standards, it guarantees secure connections with traditional brazed joining methods.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Coupling Reducer OD XID 1 3/8 X 1 1/8 | CuFe2P Copper Alloy | 130 Bar Pressure | by Aspen Pumps
Brand: Aspen Pumps
SKU: 128-129243-138118
Alternatively Known As: Copper Coupling Reducer, High Pressure Copper Fitting, CuFe2P Coupling, Refrigeration Coupling Reducer
Technical Specifications
- Material: CuFe2P Copper Iron Alloy
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Compliance: ASTM B280, AS5149.2
- Joining Method: Traditional Brazed Joining
- Magnetic Identification: Yes
- Certification: TÜV Certified
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- Made from CuFe2P copper iron alloy for high corrosion resistance
- Rated for 130 bar pressure and up to 150°C temperature
- Certified to ASTM B280 and AS5149.2 standards
- Magnetic identification for easy verification
- Traditional brazed joining method for secure connections
- Certified to TÜV for quality assurance
Professional Installation Requirements
- Installation should be performed by a qualified HVAC or refrigeration technician experienced with brazed copper fittings and high pressure systems.
Applications
- Refrigeration systems using R744 (CO2) refrigerant
- High pressure plumbing and HVAC installations
- Industrial applications requiring high corrosion resistance copper fittings
Standards & Compliance
- AS/NZS 5149.2 – Refrigeration systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Durable copper alloy reduces need for frequent replacements, minimizing waste
- Supports use in environmentally friendly R744 (CO2) refrigerant systems
Warranty Information
Warranty as per Aspen Pumps standard terms and conditions, covering manufacturing defects.
Available Now
Available for immediate purchase, ideal for high pressure refrigeration and HVAC applications requiring reliable copper fittings.
