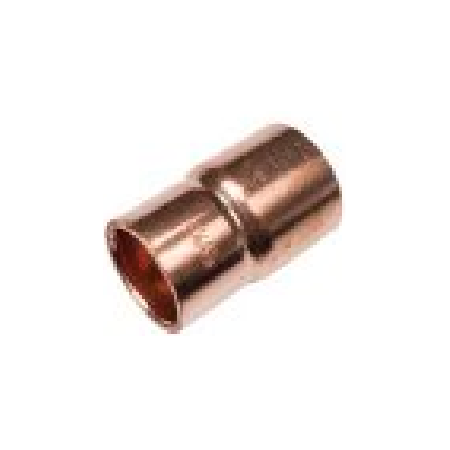

Coupling Reducer OD XID 1 5/8 X7/8 XHP | High Pressure Rated 130 Bar | CuFe2P Copper Alloy | by Aspen Pumps
The Coupling Reducer OD XID 1 5/8 X7/8 XHP is designed for high-pressure refrigeration systems, rated for 130 bar and temperatures up to 150°C. Made from durable CuFe2P copper iron alloy, it offers excellent corrosion resistance and is certified to ASTM B 280 and AS5149.2 standards. Ideal for HVAC and industrial applications, this fitting ensures reliable performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Coupling Reducer OD XID 1 5/8 X7/8 XHP | High Pressure Rated 130 Bar | CuFe2P Copper Alloy | by Aspen Pumps
Brand: Aspen Pumps
SKU: 128-129243-15878
Alternatively Known As: Copper Coupling Reducer, High Pressure Copper Fitting, SANHA Copper Fitting, Refrigeration Coupling Reducer
Technical Specifications
- Material: CuFe2P Copper Iron Alloy
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Compliance: ASTM B 280, AS5149.2
- Joining Method: Traditional Brazed Joining
- Magnetic Identification: Yes
- Certification: TÜV Certified
- Dimensions (H x L x W): 30mm x 60mm x 45mm
- Weight: 0.2 kg
Key Features
- High pressure solder fitting rated for 130 bar and 150°C
- Made from CuFe2P copper iron alloy for high corrosion resistance
- Certified to ASTM B 280 and AS5149.2 standards
- Magnetic identification for easy verification
- Traditional brazed joining method
- Certified to TÜV for quality assurance
Professional Installation Requirements
- Installation by a qualified HVAC or refrigeration technician is recommended to ensure proper brazing and system integrity.
Applications
- Refrigeration systems using R744 (CO2) refrigerant
- High pressure plumbing and HVAC installations
- Industrial applications requiring corrosion-resistant copper fittings
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Supports use in environmentally friendly refrigerants like R744 (CO2)
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
Available for immediate purchase, ideal for high pressure refrigeration and HVAC applications.
