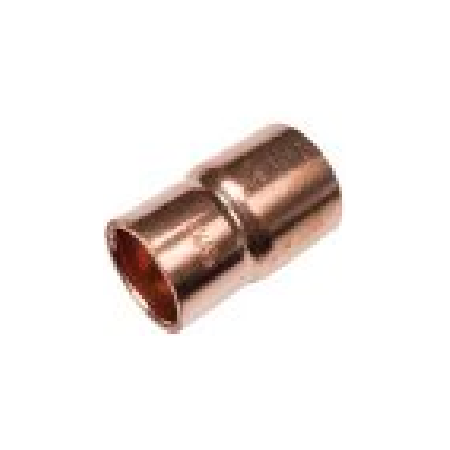

Coupling Reducer OD XID 2 1/8 to 1 5/8 | CuFe2p Copper Alloy | 130 Bar Pressure Rating | TüV Certified | by Aspen Pumps
The Coupling Reducer OD XID 2 1/8 to 1 5/8 is crafted from high-quality CuFe2p copper iron alloy, ensuring exceptional corrosion resistance and durability. With a pressure rating of 130 bar and a temperature tolerance of up to 150°C, this fitting is perfect for refrigeration systems using R744 refrigerant. Ideal for HVAC professionals, it features traditional brazed joining and is TüV certified for quality assurance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Coupling Reducer OD XID 2 1/8 to 1 5/8 | CuFe2p Copper Alloy | 130 Bar Pressure Rating | TüV Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 128-129243-218158
Alternatively Known As: Copper Coupling Reducer, High Pressure Copper Fitting, Refrigeration Coupling Reducer, CuFe2p Coupling
Technical Specifications
- Material: CuFe2p Copper Iron Alloy
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Compliance: ASTM B 280, AS5149.2
- Joining Method: Traditional Brazed Joining
- Magnetic Identification: Yes
- Certification: TüV Certified
- Dimensions (H x L x W): 30mm x 80mm x 60mm
- Weight: 0.2 kg
Key Features
- Made from CuFe2p copper iron alloy for high corrosion resistance
- Certified to ASTM B 280 and AS5149.2 standards
- Suitable for use with R744 refrigerant at 130 bar and 150°C
- Traditional brazed joining method with magnetic identification
- Certified to TüV for quality assurance
Professional Installation Requirements
- Installation by a qualified HVAC or refrigeration technician is recommended to ensure proper brazing and system integrity.
Applications
- Refrigeration systems using R744 (CO2) refrigerant
- High pressure plumbing and HVAC installations
- Industrial applications requiring corrosion-resistant copper fittings
Standards & Compliance
- Complies with AS/NZS 5149.2 Refrigerating systems - Safety and environmental requirements
Environmental Benefits
- Durable copper alloy construction reduces need for frequent replacements
- Supports use in environmentally friendly R744 (CO2) refrigerant systems
Warranty Information
Warranty coverage as per Aspen Pumps standard terms and conditions.
Available Now
The Aspen Pumps Coupling Reducer OD XID 2 1/8 to 1 5/8 XHP is available for immediate purchase, ideal for high pressure refrigeration and HVAC applications.
