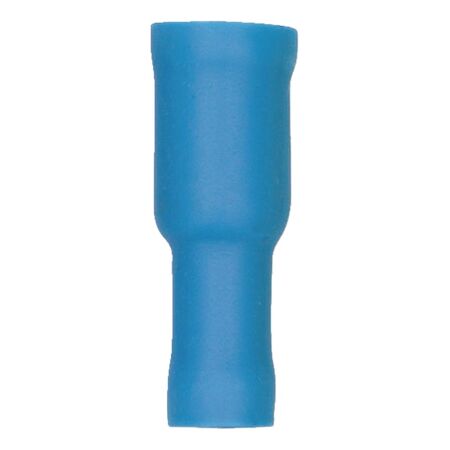

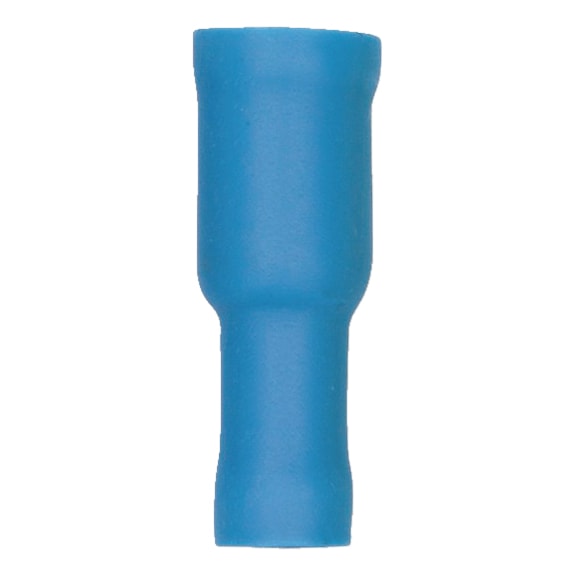

Crimp Cable Lug Blade Connector | Fully Insulated PVC | Tin Plated Copper | 600V AC Rated | @Pack of 25 | by Wurth
Crimp cable lug blade connectors are fully insulated with PVC, ensuring electrical safety and reliability. Designed for wire cross sections from 1.5 to 2.5 mm², these connectors are rated for a maximum voltage of 600 V AC and can withstand temperatures from -10 to 75 °C. Ideal for secure electrical connections in residential, commercial, and industrial applications, they offer corrosion resistance with a tin-plated copper surface.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Blade Connector | Fully Insulated PVC | Tin Plated Copper | 600V AC Rated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5589492
Alternatively Known As: Crimp terminal, insulated blade connector, cable lug connector, PVC insulated crimp terminal
Technical Specifications
- Wire cross section: 1.5-2.5 mm²
- Colour: Blue
- Diameter: 5 mm
- Max. nominal voltage: 600 V AC
- Temperature range: -10 to 75 °C
- Material: Copper
- Surface finish: Tin plated
- Insulating material: PVC
- Halogen-free: No
- Silicone-free: No
- Dimensions (H x L x W): 30mm x 50mm x 10mm
- Weight: 0.05 kg
Key Features
- Fully insulated with PVC for electrical safety
- Tin plated copper surface for corrosion resistance and reliable conductivity
- Suitable for wire cross sections from 1.5 to 2.5 mm²
- Rated for a maximum nominal voltage of 600 V AC
- Temperature range from -10 to 75 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical wiring and connections in residential, commercial, and industrial settings
- Suitable for use in automotive and machinery electrical systems
- Ideal for secure and insulated cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Tin plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Crimp Cable Lug Blade Connector fully insulated PVC 25 PCS is available for immediate purchase, ideal for electrical wiring and connection applications.
