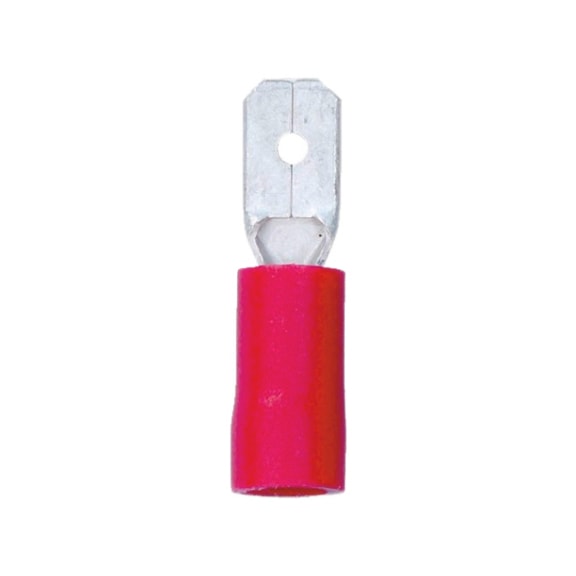

Crimp Cable Lug Blade Connector | PVC Insulated | Copper with Tin Plating | 600V AC | @Pack of 25 | by Wurth
Crimp cable lug blade connectors are essential for reliable electrical connections, featuring PVC insulation for safety and copper material with tin plating for corrosion resistance. Suitable for wire cross sections from 0.5 to 1 mm², these connectors are perfect for automotive, industrial, and household applications, ensuring secure connections in control panels and machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Blade Connector | PVC Insulated | Copper with Tin Plating | 600V AC | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5589751
Alternatively Known As: Crimp terminal, blade terminal, insulated cable lug, electrical connector, wire terminal
Technical Specifications
- Min./max. wire cross section: 0.5-1 mm²
- Colour: Red
- Nominal size of blade connector: 2.8 x 0.8 mm
- Max. nominal voltage: 600 V AC
- Max. temperature conditions: 75 °C
- Min./max. temperature conditions: -10 to 75 °C
- Material: Copper
- Surface: Tin plated
- Insulating material: PVC
- Halogen-free: No
- Silicone-free: No
- Dimensions (H x L x W): 5mm x 30mm x 10mm
- Weight: 0.05 kg
Key Features
- PVC insulated for electrical safety
- Copper material with tin plating for corrosion resistance
- Suitable for wire cross sections from 0.5 to 1 mm²
- Nominal size of blade connector: 2.8 x 0.8 mm
- Maximum nominal voltage: 600 V AC
- Temperature range: -10 to 75 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical wiring and connections in automotive, industrial, and household applications
- Suitable for connecting wires to terminals or busbars
- Used in control panels, machinery, and electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable copper and tin plating reduce corrosion and extend product life
- PVC insulation ensures electrical safety and reduces risk of short circuits
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Crimp Cable Lug Blade Connector PVC-Insulated 25 PCS is available for immediate purchase, ideal for electrical wiring and connection applications.
