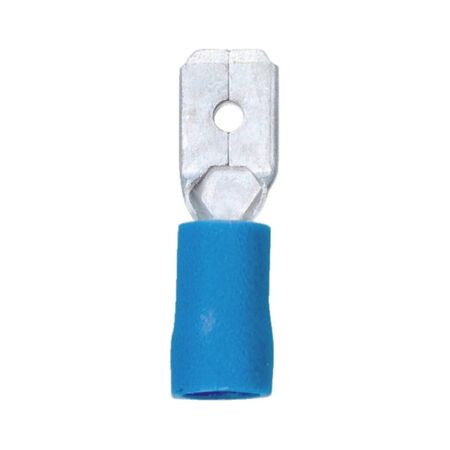

Crimp Cable Lug Blade Connector | PVC Insulated | Copper Material | 600V Rated | @Pack of 25 | by Wurth
Crimp cable lug blade connectors are essential for secure electrical connections, featuring PVC insulation for safety and copper material with tin plating for corrosion resistance. Rated for a maximum voltage of 600V AC and suitable for wire cross sections from 1.5 to 2.5 mm², these connectors are perfect for residential, commercial, and industrial applications, ensuring reliable cable terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Blade Connector | PVC Insulated | Copper Material | 600V Rated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5589392
Alternatively Known As: Crimp terminal, blade terminal, insulated cable lug, electrical connector, wire terminal
Technical Specifications
- Min./max. wire cross section: 1.5-2.5 mm²
- Colour: Blue
- Nominal size of blade connector: 4.8 x 0.8 mm
- Max. nominal voltage: 600 V AC
- Temperature range: -10 to 75 °C
- Material: Copper
- Surface: Tin plated
- Insulating material: PVC
- Halogen-free: No
- Silicone-free: No
- Dimensions (H x L x W): 5mm x 30mm x 10mm
- Weight: 0.05 kg
Key Features
- PVC insulated for electrical safety
- Copper material with tin plating for corrosion resistance
- Suitable for wire cross sections from 1.5 to 2.5 mm²
- Nominal size of blade connector: 4.8 x 0.8 mm
- Rated for maximum nominal voltage of 600 V AC
- Temperature range from -10 to 75 °C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical wiring and connections in residential, commercial, and industrial settings
- Suitable for use in automotive and machinery electrical systems
- Ideal for secure and reliable cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Tin plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Crimp Cable Lug Blade Connector PVC-Insulated 25 PCS is available for immediate purchase, ideal for electrical wiring and connection applications.
