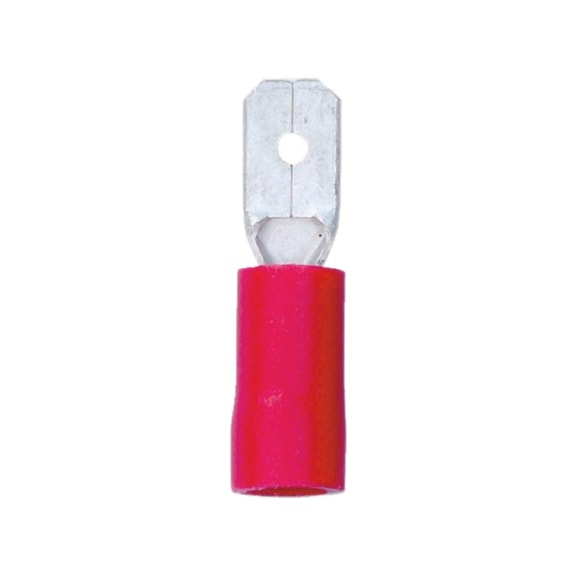

Crimp Cable Lug Blade Connector | PVC Insulated | Tin Plated Copper | 600V AC | @Pack of 25 | by Wurth
Crimp cable lug blade connectors are essential for reliable electrical connections, featuring PVC insulation for safety and a tin-plated copper surface for enhanced corrosion resistance. Suitable for wire cross sections from 0.5 to 1 mm², these connectors are perfect for automotive, industrial, and household applications, ensuring secure and efficient wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Blade Connector | PVC Insulated | Tin Plated Copper | 600V AC | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5589441
Alternatively Known As: Crimp terminal, blade terminal, insulated cable lug, electrical connector, wire terminal
Technical Specifications
- Min./max. wire cross section: 0.5-1 mm²
- Colour: Red
- Nominal size of flat plug/push connector/blade connector: 6.3 x 0.8 mm
- Max. nominal voltage: 600 V AC
- Max. temperature conditions: 75 °C
- Min./max. temperature conditions: -10 to 75 °C
- Material: Copper
- Surface: Tin plated
- Insulating material: PVC
- Halogen-free: No
- Silicone-free: No
- Dimensions (H x L x W): 2mm x 25mm x 10mm
- Weight: 0.05 kg
Key Features
- PVC insulated for electrical safety
- Tin plated copper surface for corrosion resistance
- Suitable for wire cross sections from 0.5 to 1 mm²
- Nominal size of blade connector: 6.3 x 0.8 mm
- Max nominal voltage: 600 V AC
- Temperature range: -10 to 75 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical wiring and connections in automotive, industrial, and household applications
- Suitable for connecting wires to terminals and electrical components
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Tin plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Crimp Cable Lug Blade Connector PVC-Insulated 25 PCS is available for immediate purchase, ideal for electrical wiring and connection tasks.
