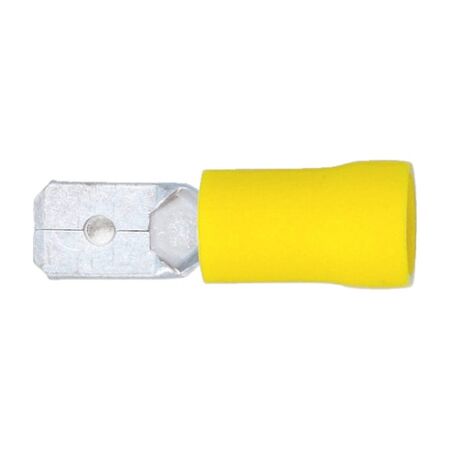

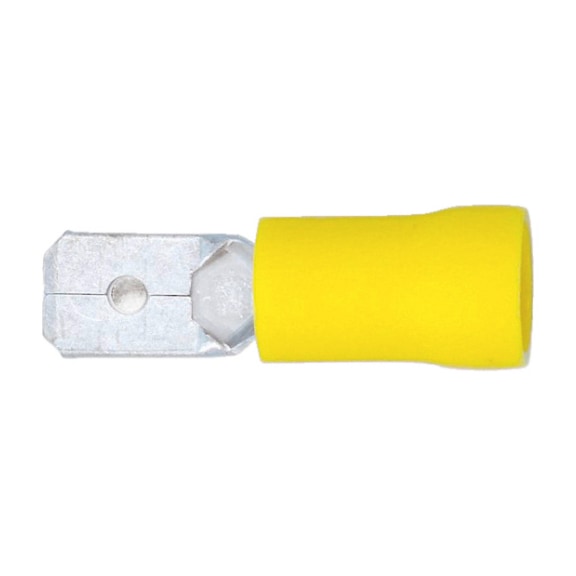

Crimp Cable Lug Blade Connector | PVC Insulated | Tin Plated Copper | 600V Rated | @Pack of 25 | by Wurth
Crimp cable lug blade connectors are PVC insulated for electrical safety and feature a tin plated copper surface for excellent conductivity. Rated for a maximum voltage of 600V AC and suitable for wire cross sections from 4 to 6 mm², these connectors are ideal for secure and reliable electrical connections in residential, commercial, and industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Blade Connector | PVC Insulated | Tin Plated Copper | 600V Rated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5589454
Alternatively Known As: Crimp terminal, blade terminal, insulated cable lug, electrical connector, PVC insulated blade connector
Technical Specifications
- Min./max. wire cross section: 4-6 mm²
- Colour: Yellow
- Nominal size of flat plug/push connector/blade connector: 6.3 x 0.8 mm
- Max. nominal voltage: 600 V AC
- Max. temperature conditions: 75 °C
- Min./max. temperature conditions: -10 to 75 °C
- Material: Copper
- Surface: Tin plated
- Insulating material: PVC
- Halogen-free: No
- Silicone-free: No
- Dimensions (H x L x W): 30mm x 40mm x 10mm
- Weight: 0.05 kg
Key Features
- PVC insulated for electrical safety
- Tin plated copper surface for corrosion resistance and excellent conductivity
- Suitable for wire cross sections from 4 to 6 mm²
- Nominal size of blade connector: 6.3 x 0.8 mm
- Rated for a maximum nominal voltage of 600 V AC
- Temperature range from -10 to 75 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical wiring and connections in residential, commercial, and industrial settings
- Suitable for use in automotive and machinery electrical systems
- Ideal for secure and reliable cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Tin plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Crimp Cable Lug Blade Connector PVC-Insulated 25 PCS is available for immediate purchase, ideal for electrical wiring and connection applications.
