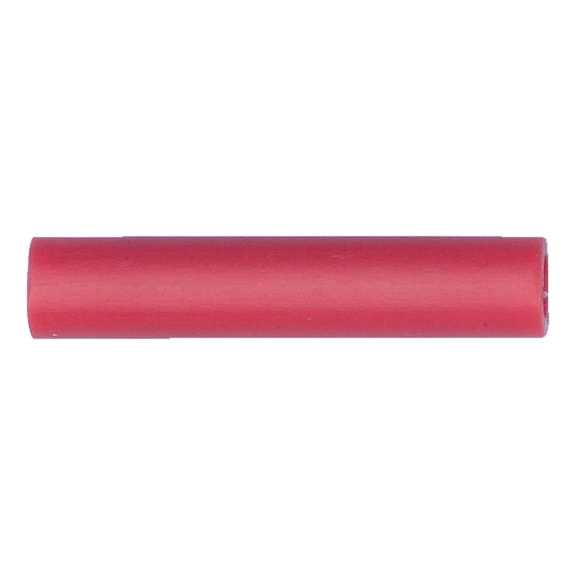

Crimp Cable Lug Butt Connector | PVC Insulated | Copper Material | 600V AC | @Pack of 25 | by Wurth
Crimp cable lug butt connectors are essential for secure electrical connections, featuring PVC insulation for safety and copper material with tin plating for corrosion resistance. Suitable for wire cross sections from 0.5 to 1.5 mm², these connectors are perfect for residential, commercial, and automotive applications, ensuring reliable cable terminations in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Butt Connector | PVC Insulated | Copper Material | 600V AC | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5589251
Alternatively Known As: Crimp cable lug, butt splice connector, insulated cable connector, PVC insulated crimp terminal
Technical Specifications
- Min./max. wire cross section: 0.5-1.5 mm²
- Colour: Red
- Length: 25 mm
- Max. nominal voltage: 600 V AC
- Temperature range: -10 to 75 °C
- Material: Copper
- Surface: Tin plated
- Insulating material: PVC
- Halogen-free: No
- Silicone-free: No
- Dimensions (H x L x W): 25mm x 25mm x 6mm
- Weight: 0.05 kg
Key Features
- PVC insulated for electrical safety
- Copper material with tin plating for corrosion resistance
- Suitable for wire cross sections from 0.5 to 1.5 mm²
- Maximum nominal voltage of 600 V AC
- Temperature range from -10 to 75 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical wiring and connections in residential, commercial, and industrial settings
- Suitable for use in automotive and machinery electrical systems
- Ideal for secure and reliable cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Tin plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Crimp Cable Lug Butt Connector PVC-Insulated 25 PCS is available for immediate purchase, ideal for electrical wiring and cable termination applications.
