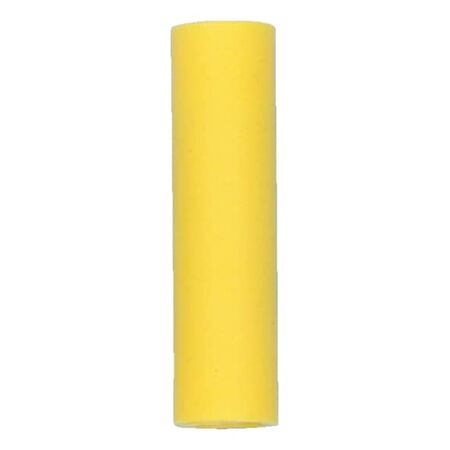

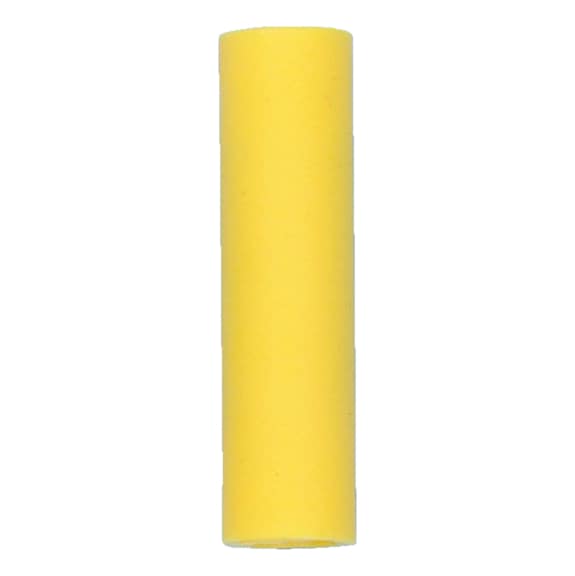

Crimp Cable Lug Butt Connector | PVC Insulated | Tin Plated Copper | 600V AC | Yellow | @Pack of 25 | by Wurth
Crimp cable lug butt connectors are essential for secure electrical connections, featuring PVC insulation for safety and a tin-plated copper surface for enhanced corrosion resistance. Designed for wire cross sections of 4-6 mm² and a maximum voltage of 600V AC, these connectors are perfect for automotive, industrial, and household applications, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Butt Connector | PVC Insulated | Tin Plated Copper | 600V AC | Yellow | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5589274
Alternatively Known As: Crimp cable connector, butt splice connector, insulated cable lug, wire connector, electrical crimp connector
Technical Specifications
- Min./max. wire cross section: 4-6 mm²
- Colour: Yellow
- Length: 27 mm
- Max. nominal voltage: 600 V AC
- Temperature range: -10 to 75 °C
- Material: Copper
- Surface: Tin plated
- Insulating material: PVC
- Halogen-free: No
- Silicone-free: No
- Dimensions (H x L x W): 5mm x 27mm x 10mm
- Weight: 0.05 kg
Key Features
- PVC insulated for electrical safety
- Tin plated copper surface for corrosion resistance
- Suitable for wire cross sections from 4 to 6 mm²
- Maximum nominal voltage of 600 V AC
- Temperature range from -10 to 75 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical wiring and connections in automotive, industrial, and household applications
- Suitable for connecting wires securely in electrical circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Tin plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Crimp Cable Lug Butt Connector PVC-Insulated 25 PCS is available for immediate purchase, ideal for electrical wiring and connection applications.
