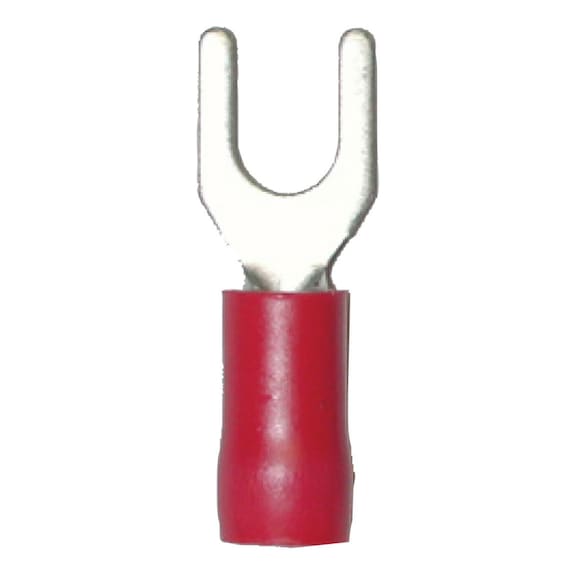

Crimp Cable Lug Fork Shape | Polyamide Insulated | M4 Flange | Red Color | @Pack of 25 | by Wurth
Crimp Cable Lug Fork Shape with polyamide insulation and M4 flange—ideal for automotive, industrial, and household electrical wiring. Designed for secure connections, this lug features an 'Easy Entry' design for fast conductor insertion and is suitable for environments with changing loads and temperature fluctuations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Fork Shape | Polyamide Insulated | M4 Flange | Red Color | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5589551
Alternatively Known As: Fork Terminal, Crimp Fork Connector, Polyamide Insulated Cable Lug, Fork Shape Cable Connector
Technical Specifications
- Min./max. wire cross section: 0.25-1.65 mm²
- Colour: Red
- Flange hole: M4
- Length: 22 mm
- Max. nominal voltage: 600 V/AC
- Max. temperature conditions: 105 °C
- Material: Copper
- Insulating material: Nylon
- Halogen-free: Yes
- Silicone-free: Yes
- Dimensions (H x L x W): 22mm x 22mm x 6mm
- Weight: 0.01 kg
Key Features
- Expanded insulating sleeve for enhanced protection
- Harmonised conductors with stronger cable core insulation
- Easy, fast, and safe insertion of the conductor with "Easy Entry" design
- High-quality polyamide insulation
- Suitable for use in situations involving changing loads and temperature fluctuations
- Fork shape in accordance with DIN 46237/C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure secure and compliant electrical connections.
Applications
- Electrical wiring and connections in automotive, industrial, and household applications
- Suitable for use in environments with changing loads and temperature fluctuations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free and silicone-free materials reduce environmental impact and improve safety
- Durable polyamide insulation extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Crimp Cable Lug Fork Shape Polyamide Insulated M4 Red 25 PCS is available now for immediate purchase. Ideal for electrical wiring in automotive, industrial, and household applications.
