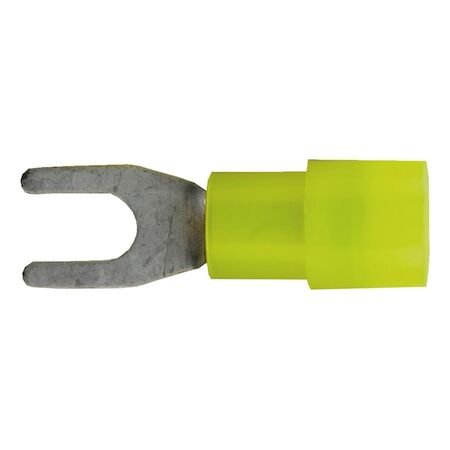

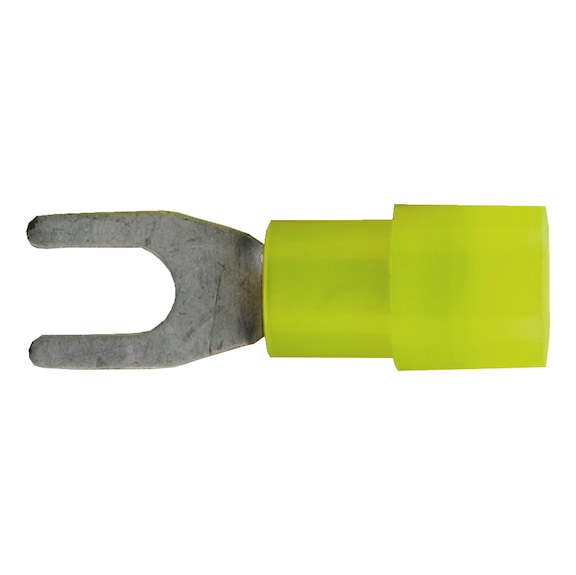

Crimp Cable Lug Fork Shape | Polyamide Insulated | M4 Flange Hole | Yellow | @Pack of 25 | by Wurth
Crimp cable lug fork shape with polyamide insulation and M4 flange hole—ideal for secure electrical connections. Designed for industrial and automotive applications, this yellow lug ensures reliable cable termination even under temperature fluctuations, making it a perfect choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Fork Shape | Polyamide Insulated | M4 Flange Hole | Yellow | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5589214
Alternatively Known As: Crimp Fork Terminal, Cable Lug Fork, Polyamide Insulated Cable Lug, Fork Tongue Terminal
Technical Specifications
- Wire cross section: 2.63-6.64 mm²
- Colour: Yellow
- Flange hole: M4
- Length: 26 mm
- Max. nominal voltage: 600 V/AC
- Max. temperature: 105 °C
- Material: Copper
- Insulating material: Nylon
- Halogen-free and silicone-free
- Dimensions (H x L x W): 26mm x 26mm x 10mm
- Weight: 0.02 kg
Key Features
- Expanded insulating sleeve for enhanced conductor protection
- Easy Entry insertion for fast and safe conductor installation
- High-quality polyamide insulation suitable for temperature fluctuations
- Fork shape design in accordance with DIN 46237/C
- Halogen-free and silicone-free materials
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and secure electrical connections.
Applications
- Electrical wiring connections requiring secure and reliable cable termination
- Industrial and automotive electrical installations
- Situations involving changing loads and temperature fluctuations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free and silicone-free materials reduce environmental impact
- Durable polyamide insulation extends product life and reduces waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for electrical wiring and industrial applications requiring reliable cable termination.
