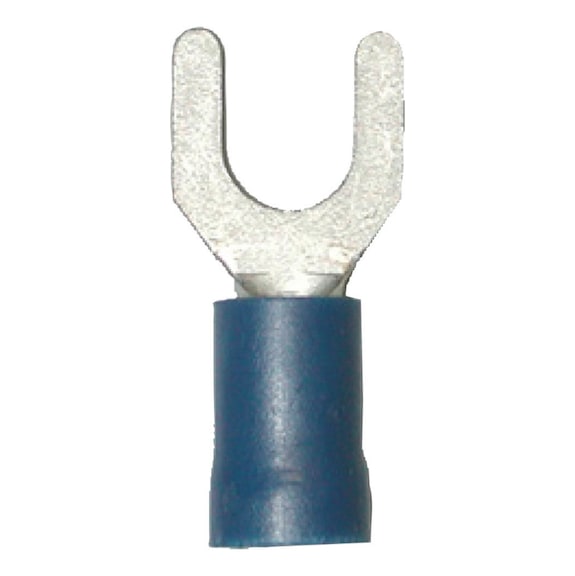

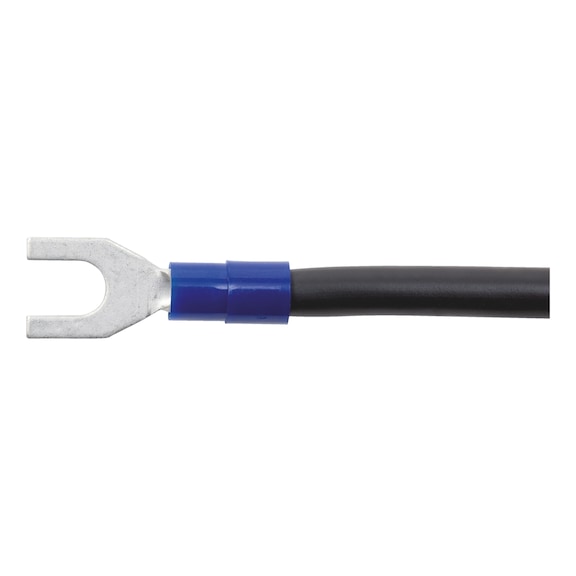

Crimp Cable Lug Fork Shape | Polyamide Insulated | M5 Flange | Blue | @Pack of 25 | by Wurth
Crimp Cable Lug Fork Shape with polyamide insulation and M5 flange—ideal for secure electrical connections. Designed for industrial and automotive applications, this lug ensures reliable performance in environments with changing loads and temperature fluctuations, making it a must-have for any electrician.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Fork Shape | Polyamide Insulated | M5 Flange | Blue | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5589542
Alternatively Known As: Fork cable lug, Polyamide insulated cable terminal, Crimp fork terminal, Blue fork cable connector
Technical Specifications
- Min./max. wire cross section: 1.04-2.63 mm²
- Colour: Blue
- Flange hole: M5
- Length: 22 mm
- Max. nominal voltage: 600 V/AC
- Max. temperature conditions: 105 °C
- Material: Copper
- Insulating material: Nylon
- Halogen-free: Yes
- Silicone-free: Yes
- Dimensions (H x L x W): 22mm x 22mm x 10mm
- Weight: 0.01 kg
Key Features
- Expanded insulating sleeve for enhanced protection
- Harmonised conductors with stronger cable core insulation
- Easy Entry insertion for fast and safe conductor insertion
- High-quality polyamide insulation
- Suitable for use in environments with changing loads and temperature fluctuations
- Fork shape in accordance with DIN 46237/C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and secure electrical connections.
Applications
- Electrical wiring connections requiring secure and reliable cable terminations
- Industrial and automotive electrical installations
- Situations involving changing loads and temperature fluctuations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free and silicone-free materials reduce environmental impact
- Durable nylon insulation extends product life and reduces waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Crimp Cable Lug Fork Shape Polyamide Insulated Blue M5 is available for immediate purchase, ideal for electrical wiring and industrial applications.
