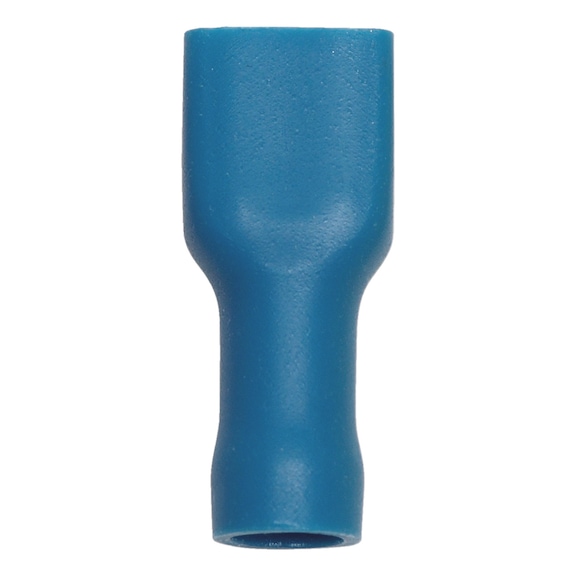

Crimp Cable Lug Push Connector | Fully Insulated PVC | Tin-Plated Brass | 600V AC Rated | @Pack of 50 | by Wurth
Crimp cable lug push connectors are fully insulated with PVC, ensuring electrical safety and reliability. Designed for wire cross sections of 1.5 to 2.5 mm², these connectors feature a push-on design for easy installation and are rated for a maximum voltage of 600V AC. Ideal for residential, commercial, and industrial electrical wiring, they provide secure and insulated cable terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Push Connector | Fully Insulated PVC | Tin-Plated Brass | 600V AC Rated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 55890522
Alternatively Known As: Crimp cable lug, push-on connector, insulated cable terminal, PVC insulated push connector
Technical Specifications
- Wire cross section: 1.5-2.5 mm²
- Colour: Blue
- Nominal size of flat plug/push connector/blade connector: 6.3 x 0.8 mm
- Maximum nominal voltage: 600 V AC
- Temperature range: -10 to 75 °C
- Material: Brass
- Surface finish: Tin plated
- Insulating material: PVC
- Halogen-free: No
- Silicone-free: No
- Dimensions (H x L x W): 0.8mm x 20mm x 6.3mm
- Weight: 0.05 kg
Key Features
- Fully insulated with PVC for electrical safety
- Push connector design for easy and secure cable insertion
- Tin-plated brass material for corrosion resistance and reliable conductivity
- Suitable for wire cross sections from 1.5 to 2.5 mm²
- Rated for a maximum nominal voltage of 600 V AC
- Temperature range from -10 to 75 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical wiring and connections in residential, commercial, and industrial settings
- Suitable for use in automotive and machinery electrical systems
- Ideal for secure and insulated cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Tin plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Crimp Cable Lug Push Connector fully insulated PVC 50 PCS is available for immediate purchase, ideal for electrical wiring and connection applications.
