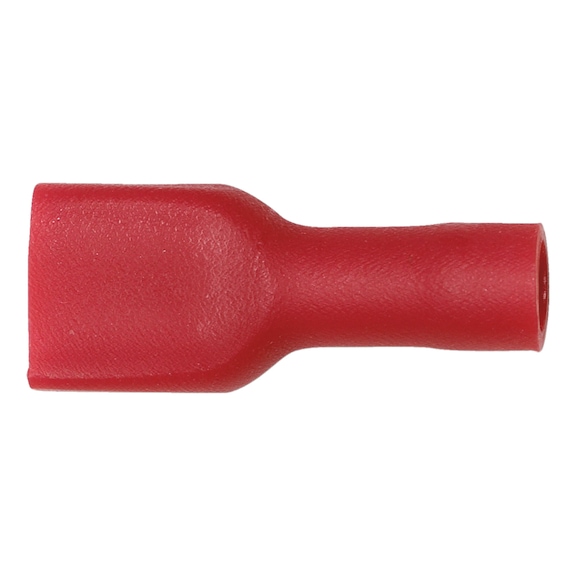

Crimp Cable Lug Push Connector | Fully Insulated PVC | Tin-Plated Brass | Red Color | @Pack of 50 | by Wurth
Crimp cable lug push connector with fully insulated PVC for electrical safety, designed for easy and secure cable insertion. Ideal for electrical wiring in residential, commercial, and industrial settings, this connector supports wire cross sections from 0.5 to 1.5 mm² and is rated for a maximum voltage of 600 V AC, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Push Connector | Fully Insulated PVC | Tin-Plated Brass | Red Color | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 55890511
Alternatively Known As: Crimp terminal, push-on connector, insulated cable lug, PVC insulated terminal, electrical push connector
Technical Specifications
- Wire cross section: 0.5-1.5 mm²
- Colour: Red
- Nominal size of flat plug/push connector/blade connector: 6.3 x 0.8 mm
- Maximum nominal voltage: 600 V AC
- Temperature range: -10 to 75 °C
- Material: Brass
- Surface finish: Tin plated
- Insulating material: PVC
- Halogen-free: No
- Silicone-free: No
- Dimensions (H x L x W): 0.8mm x 20mm x 6.3mm
- Weight: 0.1 kg
Key Features
- Fully insulated with PVC for electrical safety
- Push connector design for easy and secure cable insertion
- Tin-plated brass material for corrosion resistance and reliable conductivity
- Suitable for wire cross sections from 0.5 to 1.5 mm²
- Rated for a maximum nominal voltage of 600 V AC
- Temperature range from -10 to 75 °C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical wiring and connections in residential, commercial, and industrial settings
- Suitable for use in automotive and machinery electrical systems
- Ideal for secure and insulated cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Tin plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Available for immediate purchase, ideal for electrical wiring and connection applications in various industries.
