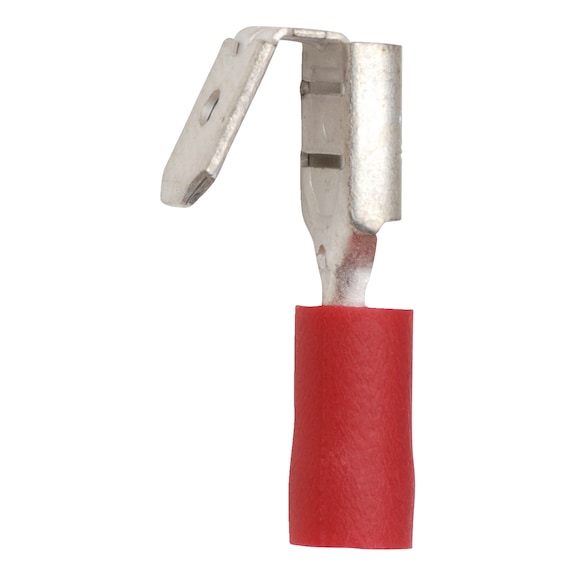

Crimp Cable Lug Push Connector | PVC Insulated | 600V AC Rated | 25 PCS | by Wurth
Crimp cable lug push connectors are essential for secure electrical connections, featuring PVC insulation for safety and a maximum voltage rating of 600V AC. Designed for wire cross sections from 0.5 to 1 mm², these connectors are perfect for residential, commercial, and industrial applications, ensuring reliable terminations in automotive and machinery systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Push Connector | PVC Insulated | 600V AC Rated | 25 PCS | by Wurth
Brand: Wurth
SKU: 5589421
Alternatively Known As: Crimp cable lug, push connector, blade connector, PVC insulated connector, electrical crimp terminals
Technical Specifications
- Min./max. wire cross section: 0.5-1 mm²
- Colour: Red
- Nominal size of flat plug/push connector/blade connector: 6.3 x 0.8 mm
- Max. nominal voltage: 600 V AC
- Temperature range: -10 to 75 °C
- Material: Copper
- Surface finish: Tin plated
- Insulating material: PVC
- Halogen-free: No
- Silicone-free: No
- Dimensions (H x L x W): 5mm x 25mm x 10mm
- Weight: 0.05 kg
Key Features
- PVC insulated for electrical safety
- Copper material with tin plating for corrosion resistance
- Nominal size of flat plug/push connector/blade connector: 6.3 x 0.8 mm
- Suitable for wire cross sections from 0.5 to 1 mm²
- Maximum nominal voltage rating of 600 V AC
- Temperature range from -10 to 75 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical wiring and connections in residential, commercial, and industrial settings
- Suitable for use in automotive and machinery electrical systems
- Ideal for secure and reliable cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable copper and tin plating extend product life reducing waste
- PVC insulation ensures electrical safety and reduces risk of short circuits
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Crimp Cable Lug Push Connector PVC-Insulated 25 PCS is available for immediate purchase, ideal for electrical wiring and connection applications.
