Crimp Cable Lug Push Connector | PVC Insulated | 600V AC Rated | Blue | @Pack of 25 | by Wurth

BRAND: Wurth
SKU: 5589052
$27.20 List price: $34.20
25 PCS ($1.09 per PCS)
+

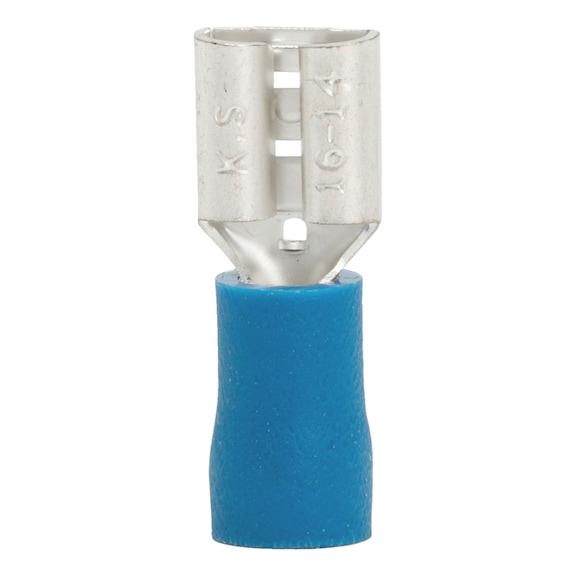

Crimp cable lug push connector with PVC insulation ensures secure and safe electrical connections. Designed for wire cross sections of 1.5 to 2.5 mm², it features a nominal voltage rating of 600V AC and operates within a temperature range of -10 to 75 °C. Ideal for residential, commercial, and industrial wiring applications, this connector is made from copper with tin plating for excellent conductivity and corrosion resistance.

Product Name/Title: Crimp Cable Lug Push Connector | PVC Insulated | 600V AC Rated | Blue | @Pack of 25 | by Wurth

Brand: Wurth

SKU: 5589052

Alternatively Known As: Crimp terminal, push-on connector, insulated cable lug, electrical crimp connector

Technical Specifications
  • Min./max. wire cross section: 1.5-2.5 mm²
  • Colour: Blue
  • Nominal size of flat plug/push connector/blade connector: 6.3 x 0.8 mm
  • Max. nominal voltage: 600 V AC
  • Temperature range: -10 to 75 °C
  • Material: Copper
  • Surface: Tin plated
  • Insulating material: PVC
  • Halogen-free: No
  • Silicone-free: No
  • Dimensions (H x L x W): 5mm x 30mm x 10mm
  • Weight: 0.05 kg
Key Features
  • Push connector with PVC insulation for secure and safe connections
  • Copper material with tin plating for excellent conductivity and corrosion resistance
  • Nominal size of flat plug/push connector/blade connector: 6.3 x 0.8 mm
  • Suitable for wire cross sections from 1.5 to 2.5 mm²
  • Max nominal voltage rating of 600 V AC
  • Temperature range from -10 to 75 °C
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure proper crimping and secure connections.
Applications
  • Electrical wiring and connections in residential, commercial, and industrial settings
  • Suitable for use in electrical panels, machinery, and automotive wiring
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste
  • Tin plating enhances corrosion resistance, extending product life
Warranty Information

Standard manufacturer warranty against defects applies.

Available Now

Wurth Crimp Cable Lug Push Connector PVC-Insulated 25 PCS is available for immediate purchase, ideal for electrical wiring and connection applications.
