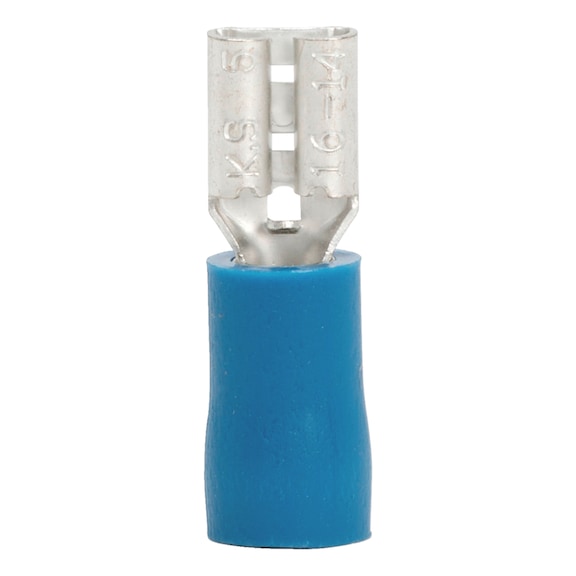

Crimp Cable Lug Push Connector | PVC Insulated | 600V AC Rated | Blue | @Pack of 25 | by Wurth
Crimp cable lug push connector with PVC insulation ensures secure electrical connections, rated for a maximum voltage of 600V AC. Ideal for industrial and automotive electrical installations, this connector accommodates wire cross sections from 1.5 to 2.5 mm², providing excellent conductivity and corrosion resistance with its tin-plated copper material.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Push Connector | PVC Insulated | 600V AC Rated | Blue | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5589762
Alternatively Known As: Crimp terminal, push-on connector, insulated cable lug, electrical crimp connector
Technical Specifications
- Min./max. wire cross section: 1.5-2.5 mm²
- Colour: Blue
- Nominal size of flat plug/push connector/blade connector: 4.8 x 0.5 mm
- Max. nominal voltage: 600 V AC
- Temperature range: -10 to 75 °C
- Material: Copper
- Surface finish: Tin plated
- Insulating material: PVC
- Halogen-free: No
- Silicone-free: No
- Dimensions (H x L x W): 20mm x 30mm x 5mm
- Weight: 0.05 kg
Key Features
- Push connector with PVC insulation for secure cable connections
- Copper material with tin plating for excellent conductivity and corrosion resistance
- Suitable for wire cross sections from 1.5 to 2.5 mm²
- Rated for a maximum nominal voltage of 600 V AC
- Temperature range from -10 to 75 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical wiring connections
- Industrial and automotive electrical installations
- General electrical maintenance and repair
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Tin plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Crimp Cable Lug Push Connector PVC-Insulated 25 PCS is available for immediate purchase, ideal for electrical wiring and maintenance applications.
