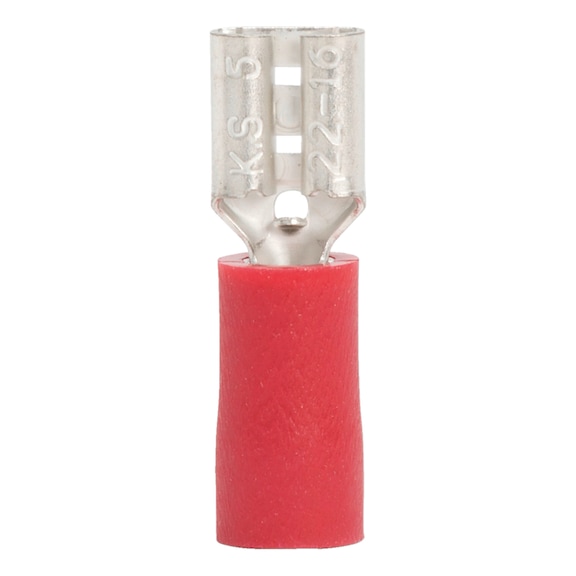

Crimp Cable Lug Push Connector | PVC Insulated | 600V AC Rated | Red Color | @Pack of 25 | by Wurth
Crimp cable lug push connector with PVC insulation and rated for 600V AC is perfect for secure electrical connections. Designed for wire cross sections from 0.5 to 1 mm², this red connector ensures easy and reliable cable terminations in residential, commercial, and industrial applications. Built with copper and tin plating for enhanced corrosion resistance, it's ideal for both automotive and machinery electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Push Connector | PVC Insulated | 600V AC Rated | Red Color | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5589761
Alternatively Known As: Crimp cable lug, push-on connector, insulated cable terminal, PVC insulated crimp connector
Technical Specifications
- Min./max. wire cross section: 0.5-1 mm²
- Colour: Red
- Nominal size of flat plug/push connector/blade connector: 4.8 x 0.5 mm
- Max. nominal voltage: 600 V AC
- Temperature range: -10 to 75 °C
- Material: Copper
- Surface finish: Tin plated
- Insulating material: PVC
- Halogen-free: No
- Silicone-free: No
- Dimensions (H x L x W): 15mm x 25mm x 5mm
- Weight: 0.05 kg
Key Features
- PVC insulated for electrical safety
- Copper material with tin plating for corrosion resistance
- Push connector design for easy and secure cable insertion
- Suitable for wire cross sections from 0.5 to 1 mm²
- Rated for a maximum nominal voltage of 600 V AC
- Temperature range from -10 to 75 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection integrity.
Applications
- Electrical wiring and connections in residential, commercial, and industrial settings
- Suitable for use in automotive and machinery electrical systems
- Ideal for secure and reliable cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Tin plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Crimp Cable Lug Push Connector PVC-Insulated 25 PCS is available for immediate purchase, ideal for electrical wiring and connection applications.
