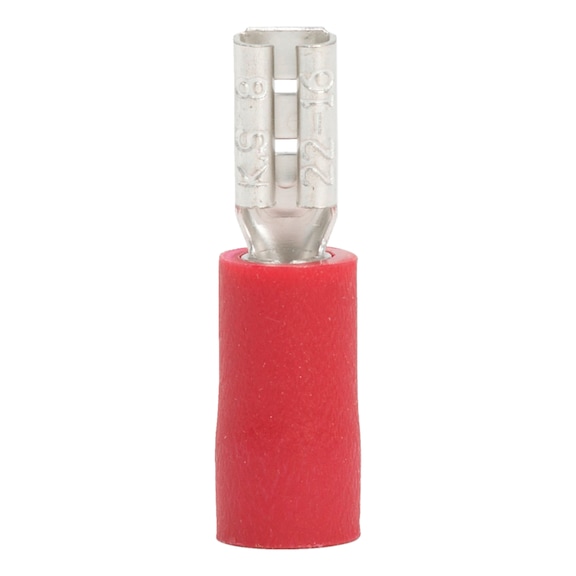

Crimp Cable Lug Push Connector | PVC Insulated | Copper with Tin Plating | 600V AC Rated | @Pack of 25 | by Wurth
Crimp cable lug push connectors are designed for secure electrical connections, featuring PVC insulation for safety and copper material with tin plating for corrosion resistance. Ideal for residential, commercial, and industrial wiring, these connectors support wire cross sections from 0.5 to 1 mm² and are rated for a maximum voltage of 600V AC, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Push Connector | PVC Insulated | Copper with Tin Plating | 600V AC Rated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 558960
Alternatively Known As: Crimp terminal, push-on connector, insulated cable lug, wire connector, electrical crimp connector
Technical Specifications
- Min./max. wire cross section: 0.5-1 mm²
- Colour: Red
- Nominal size of flat plug/push connector/blade connector: 2.8 x 0.8 mm
- Max. nominal voltage: 600 V AC
- Temperature range: -10 to 75 °C
- Material: Copper
- Surface: Tin plated
- Insulating material: PVC
- Halogen-free: No
- Silicone-free: No
- Dimensions (H x L x W): 30mm x 40mm x 10mm
- Weight: 0.05 kg
Key Features
- PVC insulated for electrical safety
- Copper material with tin plating for corrosion resistance
- Push connector design for easy and secure cable connection
- Suitable for wire cross sections from 0.5 to 1 mm²
- Rated for a maximum nominal voltage of 600 V AC
- Temperature range from -10 to 75 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical wiring and connections in residential, commercial, and industrial settings
- Suitable for use in automotive and machinery electrical systems
- Ideal for secure and reliable cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Tin plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Crimp Cable Lug Push Connector PVC-Insulated 25 PCS is available for immediate purchase, ideal for electrical wiring and connection applications.
