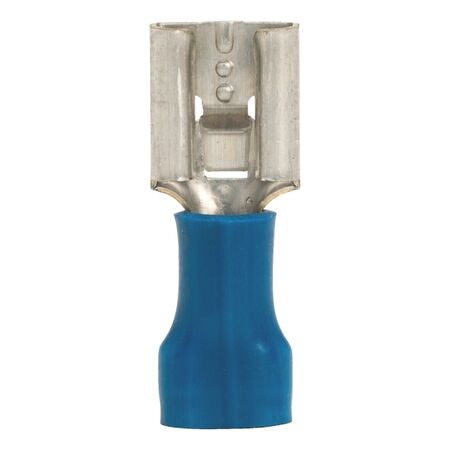

Crimp Cable Lug Push Connector | PVC Insulated | Copper with Tin Plating | Blue Color | @Pack of 25 | by Wurth
Crimp cable lug push connector designed for electrical safety, featuring PVC insulation and copper material with tin plating for excellent conductivity. Ideal for secure cable terminations in residential, commercial, and industrial settings, this connector supports wire cross sections from 1.5 to 2.5 mm² and is rated for a maximum voltage of 300 V AC.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Push Connector | PVC Insulated | Copper with Tin Plating | Blue Color | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5589402
Alternatively Known As: Crimp cable lug, push-on connector, insulated cable terminal, push connector lug, electrical cable connector
Technical Specifications
- Wire cross section: 1.5-2.5 mm²
- Colour: Blue
- Nominal size of flat plug/push connector/blade connector: 8.2 x 0.8 mm
- Maximum nominal voltage: 300 V AC
- Temperature range: -10 to 75 °C
- Material: Copper
- Surface finish: Tin plated
- Insulating material: PVC
- Halogen-free: No
- Silicone-free: No
- Dimensions (H x L x W): 2mm x 20mm x 8mm
- Weight: 0.05 kg
Key Features
- PVC insulated for electrical safety
- Copper material with tin plating for excellent conductivity and corrosion resistance
- Push connector design for easy and secure cable insertion
- Suitable for wire cross sections from 1.5 to 2.5 mm²
- Rated for a maximum nominal voltage of 300 V AC
- Temperature range from -10 to 75 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure connections.
Applications
- Electrical wiring and connections in residential, commercial, and industrial settings
- Suitable for use in automotive and machinery electrical systems
- Ideal for secure and reliable cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Tin plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Crimp Cable Lug Push Connector PVC-Insulated 25 PCS is available for immediate purchase, ideal for electrical wiring and cable termination applications.
