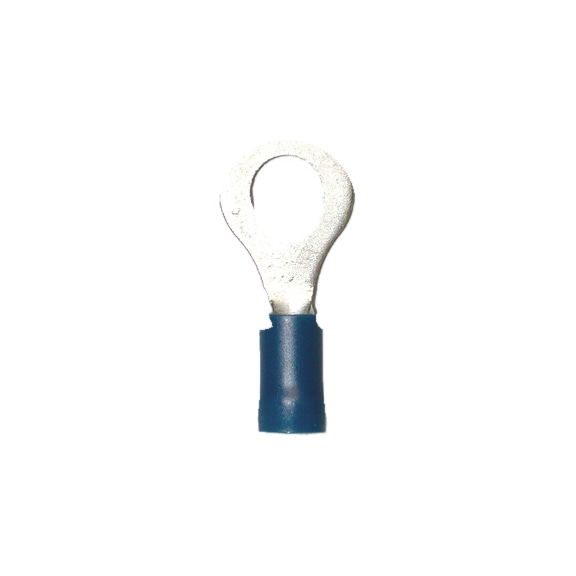

Crimp Cable Lug Ring Connector | PVC-Insulated | Copper Material | 600V Max Voltage | @Pack of 25 | by Wurth
Crimp cable lug ring connectors are essential for reliable electrical wiring connections, featuring PVC insulation for safety and copper material for excellent conductivity. Designed for wire cross sections from 1.04 to 2.63 mm², these connectors are perfect for industrial, automotive, and general electrical maintenance applications, ensuring compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Ring Connector | PVC-Insulated | Copper Material | 600V Max Voltage | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5589132
Alternatively Known As: Crimp ring terminal, cable lug connector, insulated ring terminal, electrical crimp connector
Technical Specifications
- Min./max. wire cross section: 1.04-2.63 mm²
- Colour: Blue
- Flange hole: M12
- Max. nominal voltage: 600 V/AC
- Temperature range: 0 to 105 °C
- Material: Copper
- Insulating material: Nylon
- Halogen-free: Yes
- Silicone-free: Yes
- Dimensions (H x L x W): 5mm x 50mm x 20mm
- Weight: 0.05 kg
Key Features
- PVC-insulated for electrical safety
- Copper material for excellent conductivity
- Halogen-free and silicone-free insulation
- Suitable for wire cross sections from 1.04 to 2.63 mm²
- Max nominal voltage of 600 V/AC
- Temperature range from 0 to 105 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical wiring connections
- Industrial and automotive electrical installations
- General electrical maintenance and repair
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free and silicone-free materials reduce environmental impact and improve safety.
Warranty Information
Standard manufacturer warranty against defects.
Available Now
Wurth Crimp Cable Lug Ring Connector PVC-Insulated 25 PCS is available for immediate purchase, ideal for electrical wiring and maintenance applications.
